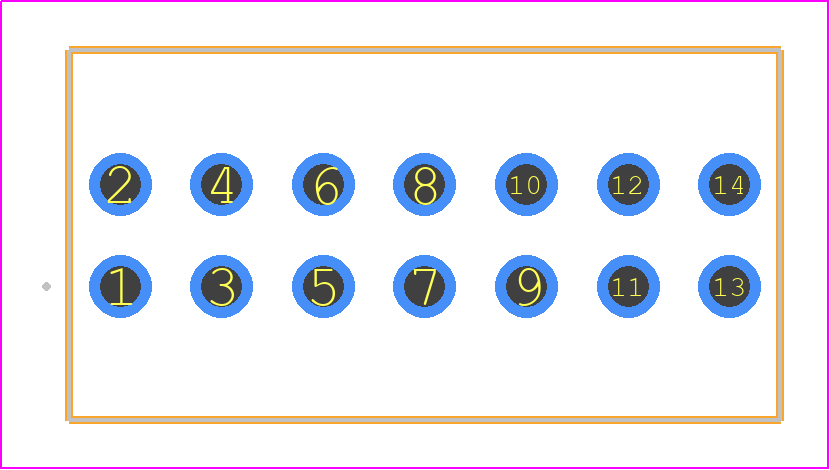

TSS-107-02-F-D - SAMTEC

TSS-107-02-F-D Details

• Manufacturer Part Number:

  TSS-107-02-F-D

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Direct Group:

  CH45050802014091000700510108013YY01YY04093204

• Similar Group:

  CH45050802014091000700510108013YY01YY04

• Country Of Origin:

  Malaysia, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  7

• Body Breadth:

  0.365 inch

• Body Depth:

  0.35 inch

• Body Length:

  1 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD FLASH OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1400VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  CABLE

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.165 inch

• Termination Type:

  CRIMP

• Total Number of Contacts:

  14
