TSS-113-01-L-D - SAMTEC

Description: Headers & Wire Housings .100" Shrouded Terminal Strip

Download TSS-113-01-L-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

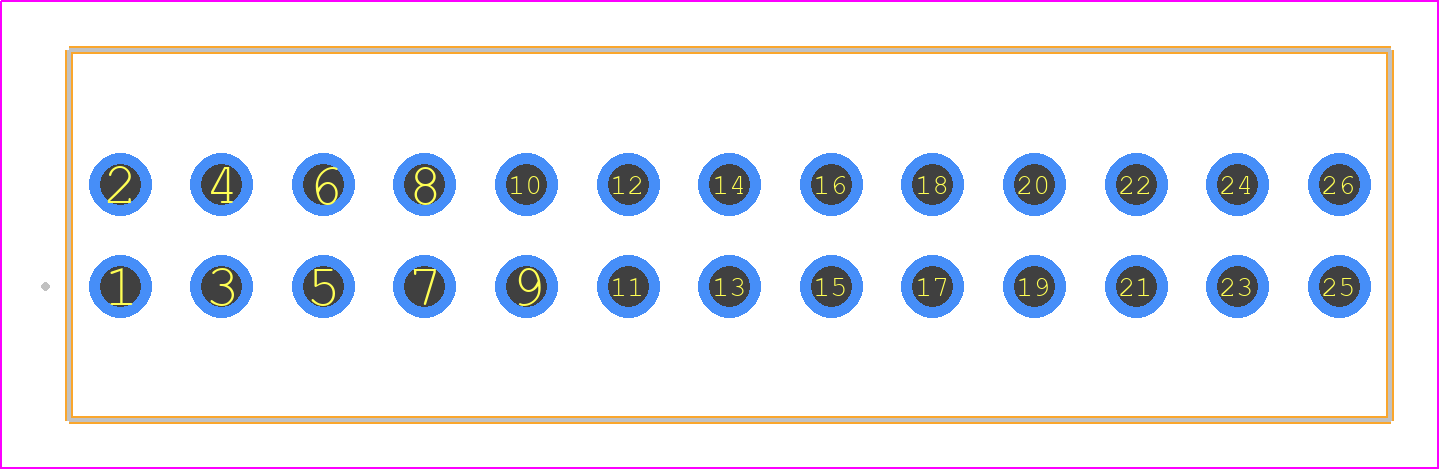

TSS-113-01-L-D - SAMTEC PCB footprint - Other - Other - TSS-113-XX-YYY-D
click to zoom
3D Models
TSS-113-01-L-D - SAMTEC  - 3D model - Other - TSS-113-XX-YYY-D
click to zoom

TSS-113-01-L-D Details

  • Manufacturer Part Number:

    TSS-113-01-L-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Body Breadth:

    0.365 inch

  • Body Depth:

    0.35 inch

  • Body Length:

    1.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    CABLE

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    10u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.115 inch

  • Termination Type:

    CRIMP

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

TSS-113-01-L-D Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TSS-113-01-L-D connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
  • The maximum operating temperature for the TSS-113-01-L-D connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the TSS-113-01-L-D connector is compatible with lead-free soldering processes. Samtec Inc recommends following the recommended soldering profile and procedures to ensure reliable connections.
  • The typical insertion force for the TSS-113-01-L-D connector is around 10-15 N (2.2-3.3 lbf) per contact. However, this may vary depending on the specific application and mating conditions.
