TSS-125-02-SS-D - SAMTEC

Description: 50 Position, .100" Shrouded Terminal Strip

Download TSS-125-02-SS-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

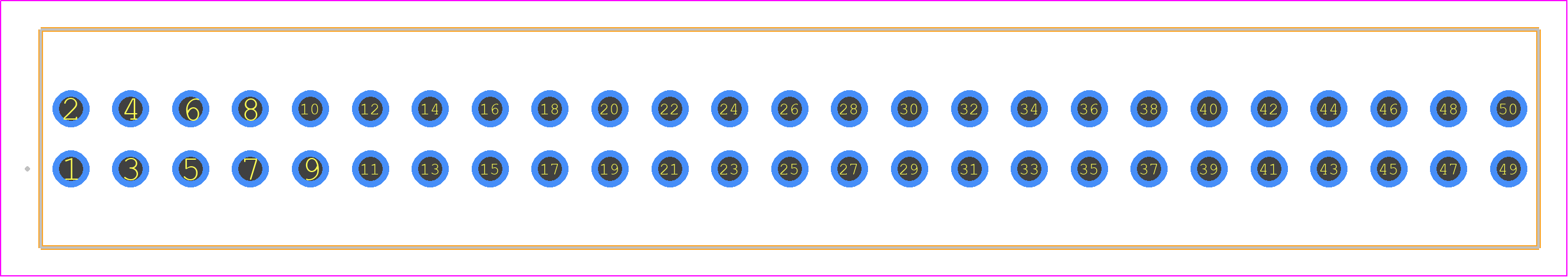

TSS-125-02-SS-D - SAMTEC PCB footprint - Other - Other - TSS-125-XX-YYY-D
click to zoom

TSS-125-02-SS-D Details

  • Manufacturer Part Number:

    TSS-125-02-SS-D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.365 inch

  • Body Depth:

    0.365 inch

  • Body Length:

    2.65 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1414VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZATION NOTCH

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.165 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

TSS-125-02-SS-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the TSS-125-02-SS-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the TSS-125-02-SS-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the TSS-125-02-SS-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • The TSS-125-02-SS-D connector has a sealed design, but it's not hermetically sealed. Samtec recommends using additional sealing or conformal coating to protect the connector in humid or wet environments.
  • The mating cycle life of the TSS-125-02-SS-D connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and environmental conditions.
