TSS-13HLN+ - Mini-Circuits

Description: Ultra High Dynamic Range, Shutdown Monolithic Amplifier

Download TSS-13HLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

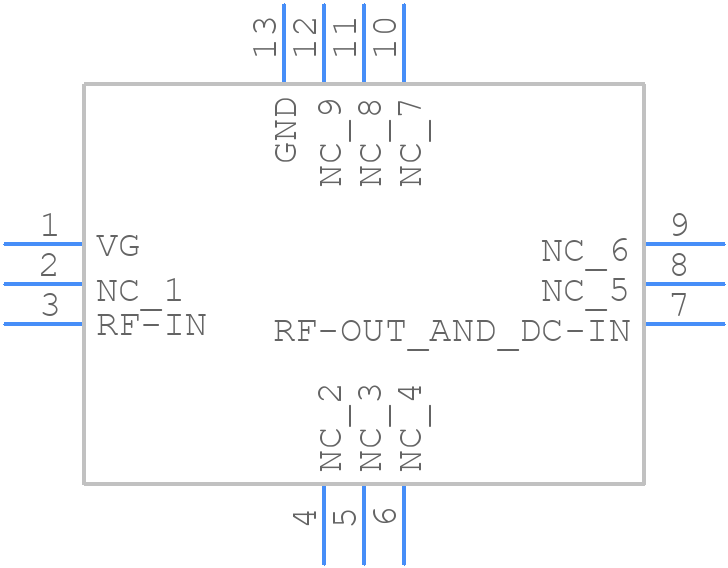

Symbol
TSS-13HLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TSS-13HLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225
click to zoom
3D Models
TSS-13HLN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225
click to zoom

TSS-13HLN+ Details

  • Manufacturer Part Number:

    TSS-13HLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-02-15

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    21.1 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3/5/8 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    234 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    Gold (Au)

  • VSWR-Max:

    1.05

TSS-13HLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TSS-13HLN+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-014.
  • The TSS-13HLN+ can handle up to 1W of continuous power. However, it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the TSS-13HLN+ can be used in switching applications, but it's crucial to ensure that the switch-on and switch-off times are slow enough to prevent damage to the device. A general rule of thumb is to limit the switching frequency to less than 100 kHz.
  • Common issues with the TSS-13HLN+ include overheating, poor impedance matching, and incorrect biasing. To troubleshoot, check the device's temperature, verify the impedance matching network, and ensure correct biasing according to the datasheet. Mini-Circuits also provides troubleshooting guides on their website.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSS-13HLN+ Overview

Use the download button to access the TSS-13HLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSS-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
