TSS-53LNB+ - Mini-Circuits

Description: Low Noise MMIC Amplifier, 0.5 to 5 GHz

Download TSS-53LNB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

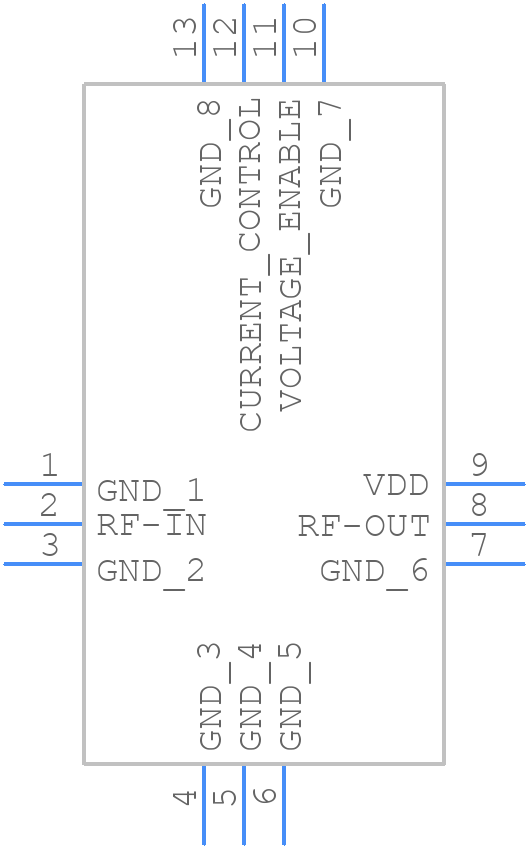

TSS-53LNB+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TSS-53LNB+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12_1
click to zoom
3D Models
TSS-53LNB+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-12_1
click to zoom

TSS-53LNB+ Details

  • Manufacturer Part Number:

    TSS-53LNB+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.5 dB

  • Input Power-Max (CW):

    8 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    105 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

TSS-53LNB+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to use a solid ground plane, keep the signal traces short and away from noise sources, and use a common ground point for the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • Proper biasing is crucial for the device's performance. Ensure the voltage supply is within the recommended range (12-15V) and the current limit is set correctly. Improper biasing can lead to reduced gain, increased noise, and even device damage.
  • The device is designed for 50Ω input and output impedance. Ensure proper impedance matching using resistive matching networks or transmission lines to achieve optimal gain and return loss.
  • The device can operate up to 85°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Overheating can lead to reduced performance, increased noise, and even device failure.
  • The device is sensitive to ESD. Handle the device by the body, avoid touching the pins, and use an ESD wrist strap or mat. Use ESD-protected packaging and storage to prevent damage.
