TSS2-53LNB+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 0.5 - 5 GHz, 50?

Download TSS2-53LNB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

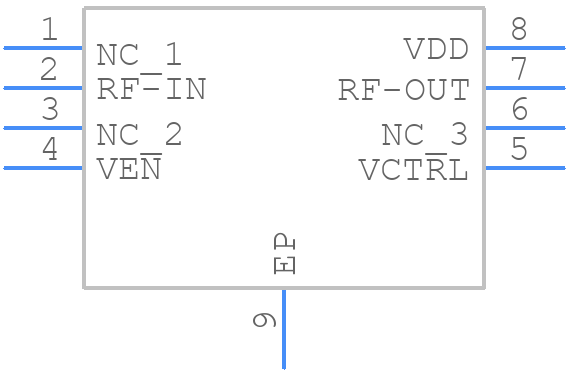

Symbol
TSS2-53LNB+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TSS2-53LNB+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-VQFN Exposed Pad
click to zoom
3D Models
TSS2-53LNB+ - Mini-Circuits - 3D model - Small Outline No-lead - 12-VQFN Exposed Pad
click to zoom

TSS2-53LNB+ Details

  • Manufacturer Part Number:

    TSS2-53LNB+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    19 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    94 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.16

TSS2-53LNB+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TSS2-53LNB+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their datasheet. It's crucial to simulate and optimize the matching network for your specific application.
  • The TSS2-53LNB+ is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures. If your application requires operation at extreme temperatures, consult with Mini-Circuits or perform thorough testing to ensure the device meets your requirements.
  • While the TSS2-53LNB+ is primarily designed for linear applications, it can be used in switching applications with some caution. The device's switching speed is limited, and it may not be suitable for high-frequency switching. Consult with Mini-Circuits or perform thorough testing to ensure the device meets your switching requirements.
  • The TSS2-53LNB+ is a sensitive device and requires proper ESD protection. Use ESD-safe handling and storage procedures, and consider adding ESD protection circuits or devices in your design. Mini-Circuits recommends following the guidelines in their application note AN-60 for ESD protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSS2-53LNB+ Overview

Use the download button to access the TSS2-53LNB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSS2-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
