TST36RB02Z footprint, schematic symbol and 3D model by ITT CANNON

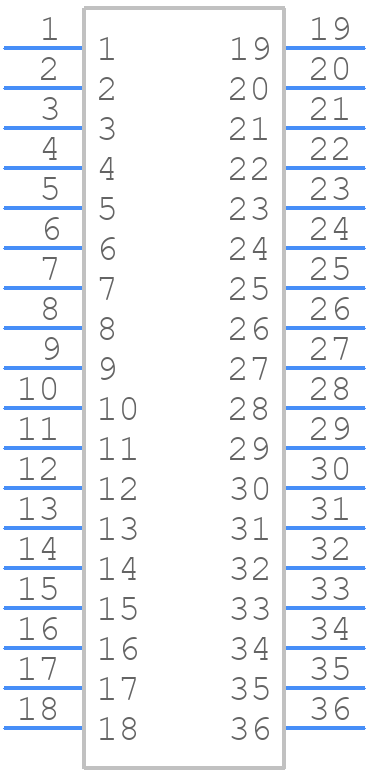

Symbol

click to zoom

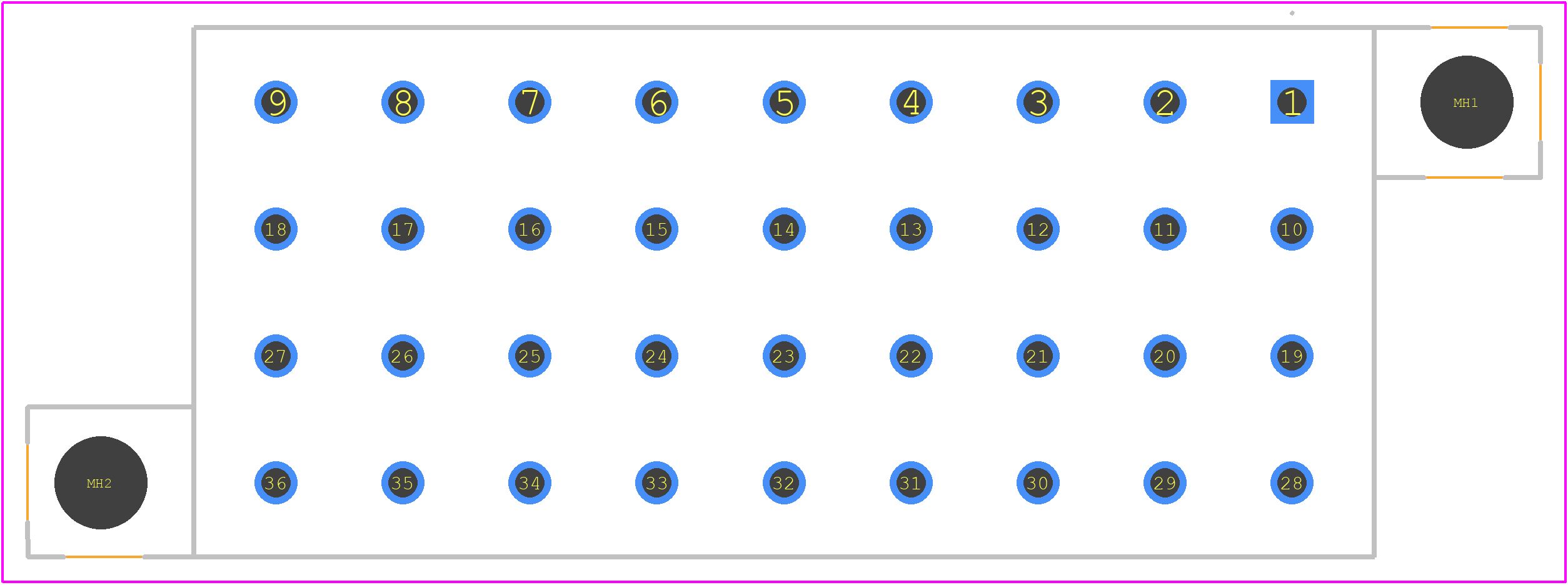

PCB Footprints

TST36RB02Z - ITT CANNON PCB footprint - Other - Other - TST36RB02Z-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TST36RB02Z
Part Number TST36RB02Z
Manufacturer ITT CANNON
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - TST36RB02Z-2
Released Date Feb 22, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TST36RB02Z Details

Manufacturer Part Number:
TST36RB02Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
10 Weeks
Manufacturer:
ITT Interconnect Solutions
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

TST36RB02Z Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the jack screws.
Yes, the TST36RB02Z connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
Yes, the TST36RB02Z connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C (-133°F to 302°F) and humidity resistance of 95% RH at 40°C (104°F).
The TST36RB02Z connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
Yes, the TST36RB02Z connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

Trust Checks

Community Provided

System Verified

Community Approved

TST36RB02Z Overview

Use the download button to access the TST36RB02Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TST36, or try a keyword search, such as Power Connectors
