TSU112IQ2T - STMicroelectronics

Description: Nanopower (900 nA), high accuracy (150 µV) 5 V CMOS operational amplifier

Download TSU112IQ2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

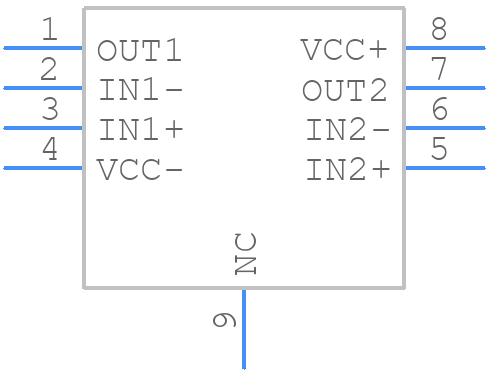

TSU112IQ2T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSU112IQ2T - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 2 x 2 _11
click to zoom
3D Models
TSU112IQ2T - STMicroelectronics - 3D model - Small Outline No-lead - DFN8 2 x 2 _11
click to zoom

TSU112IQ2T Details

  • Manufacturer Part Number:

    TSU112IQ2T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    71 dB

  • Common-mode Reject Ratio-Nom:

    107 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    235 µV

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Number of Functions:

    8

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.6 mm

  • Slew Rate-Nom:

    0.0025 V/us

  • Supply Current-Max:

    0.00324 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    10

  • Voltage Gain-Min:

    56234

  • Wideband:

    NO

  • Width:

    2 mm

TSU112IQ2T Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TSU112IQ2T is a highly configurable device, and STMicroelectronics provides a software development kit (SDK) that includes a graphical user interface (GUI) to configure the device for specific applications. The SDK also includes example code and documentation to help with the configuration process.
  • The maximum cable length supported by the TSU112IQ2T depends on the specific application and the type of cable used. However, as a general guideline, STMicroelectronics recommends a maximum cable length of 10 meters for HDMI and 3 meters for DisplayPort. Longer cable lengths may require additional signal conditioning or repeaters.
  • STMicroelectronics provides a range of tools and resources to help troubleshoot issues with the TSU112IQ2T, including a debug mode that allows engineers to monitor internal signals and registers. Additionally, STMicroelectronics offers technical support and application notes that provide guidance on troubleshooting common issues.
  • Yes, the TSU112IQ2T is compatible with a range of industry standards, including HDMI 2.1, DisplayPort 1.4, and USB 3.2 Gen 2. STMicroelectronics provides compliance testing and certification for these standards, and the device is designed to meet the requirements of these standards.
