Samtec provides a recommended PCB layout and land pattern in their Application Notes (AN-105) and PCB Footprint drawings, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize the risk of damage or electrical issues.
While the TSW-114-07-S-S is a rugged connector, it's essential to evaluate its suitability for high-vibration or high-shock applications. Samtec recommends consulting their Environmental Performance Specifications (EPS) document and performing thorough testing to ensure the connector meets the specific requirements of your application.
To ensure proper mating and unmating, follow Samtec's recommended mating and unmating sequences, and use the correct mating tools (e.g., extraction tools). It's also crucial to handle the connectors by the body, rather than the pins, to prevent damage or bending.
The TSW-114-07-S-S has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions. Consult Samtec's datasheet and environmental specifications for more information.
While the TSW-114-07-S-S is designed to be rugged, it's not suitable for all harsh environments. Samtec recommends evaluating the connector's performance in specific environmental conditions and consulting their Environmental Performance Specifications (EPS) document. Additional coatings or sealing may be required for extreme environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-114-07-S-S Overview

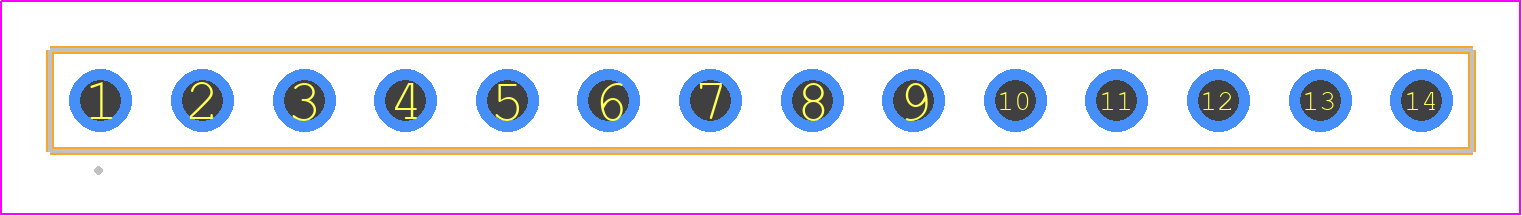

Use the download button to access the TSW-114-07-S-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
