TSW-135-11-FM-S - SAMTEC

Description: 35 Position, Single Row, Classic PCB Header Strips, 0.100" pitch

Download TSW-135-11-FM-S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TSW-135-11-FM-S model

Email notifications will be applied after download.

Send part feedback

Symbol

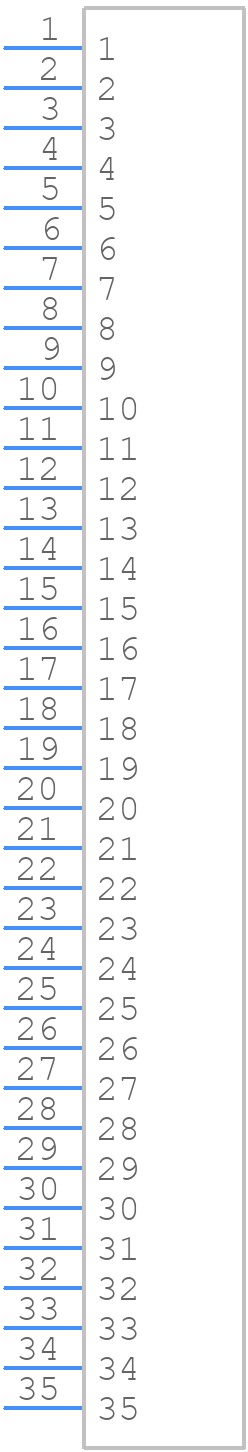

TSW-135-11-FM-S - SAMTEC - PCB symbol

PCB Footprints

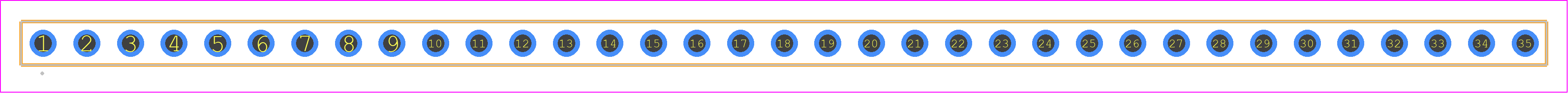

TSW-135-11-FM-S - SAMTEC PCB footprint - Other - Other - TSW-135-XX-YY-S

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSW-135-11-FM-S
Part Number TSW-135-11-FM-S
Manufacturer SAMTEC
Pin Count 35
Part Category Connector
Package Category Other
Footprint Name Other - TSW-135-XX-YY-S
Released Date Jun 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSW-135-11-FM-S Details

Manufacturer Part Number:
TSW-135-11-FM-S
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TSW-135-11-FM-S Overview

Use the download button to access the TSW-135-11-FM-S schematic symbol and PCB footprint.
