TSW-150-09-G-S-RA - SAMTEC

Description: CONN HEADER 50 POS .100"

Download TSW-150-09-G-S-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

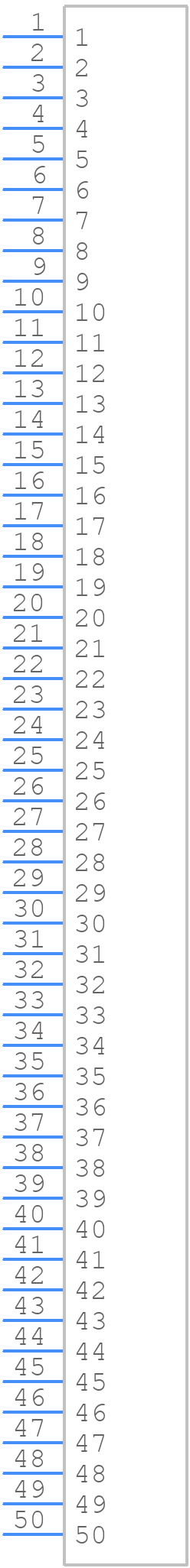

TSW-150-09-G-S-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

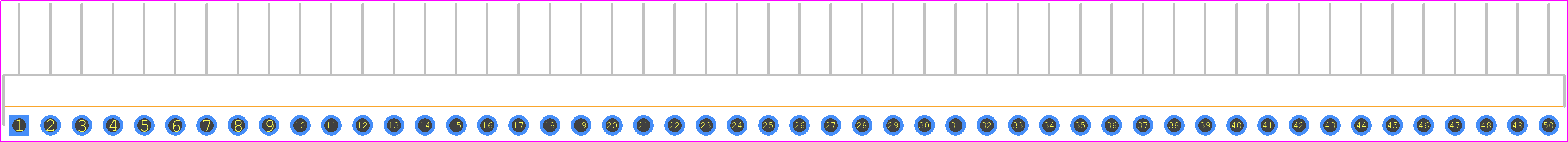

TSW-150-09-G-S-RA - SAMTEC PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - TSW-150-09-G-S-RA
click to zoom
3D Models
TSW-150-09-G-S-RA - SAMTEC - 3D model - Header, Unshrouded - Right Angle PTH Pin - TSW-150-09-G-S-RA
click to zoom

TSW-150-09-G-S-RA Details

  • Manufacturer Part Number:

    TSW-150-09-G-S-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Body Breadth:

    0.119 inch

  • Body Depth:

    0.16 inch

  • Body Length:

    5 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    5.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

TSW-150-09-G-S-RA Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the TSW-150-09-G-S-RA connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TSW-150-09-G-S-RA connector is designed to withstand high-vibration environments. It has a ruggedized design and is tested to meet the requirements of various industry standards, including IEC 61373 and EN 61373.
  • The maximum operating temperature range for the TSW-150-09-G-S-RA connector is -55°C to 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • Yes, the TSW-150-09-G-S-RA connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems. The connector's design and packaging are optimized for efficient and reliable assembly.
  • The typical lead time for delivery of the TSW-150-09-G-S-RA connector varies depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 6-8 weeks for standard orders. Expedited delivery options may be available for an additional fee.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSW-150-09-G-S-RA Overview

Use the download button to access the TSW-150-09-G-S-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1, or try a keyword search, such as Headers and Edge Type Connectors
