Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
Yes, the TSW-150-14-T-S connector is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection even in harsh environments. However, it's recommended to consult with Samtec's application engineers to determine the best connector for your specific application.
The TSW-150-14-T-S connector has a maximum operating temperature of 125°C. While it can withstand high temperatures, it's essential to consider the specific requirements of your application and consult with Samtec's application engineers to determine the best connector for your needs.
The TSW-150-14-T-S connector has a moisture-resistant design, but it's not intended for immersion in water or exposure to extreme humidity. If your application requires a connector that can withstand harsh environmental conditions, consider Samtec's sealed or waterproof connectors, such as the IP67-rated SEARAY connector series.
The TSW-150-14-T-S connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 mating and unmating cycles without compromising its performance. However, the actual mating cycle life may vary depending on the application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-150-14-T-S Overview

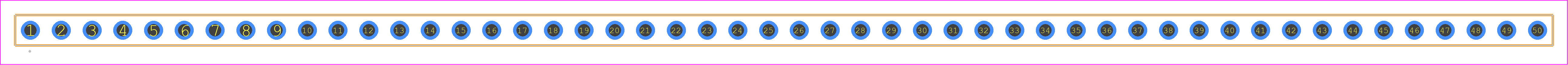

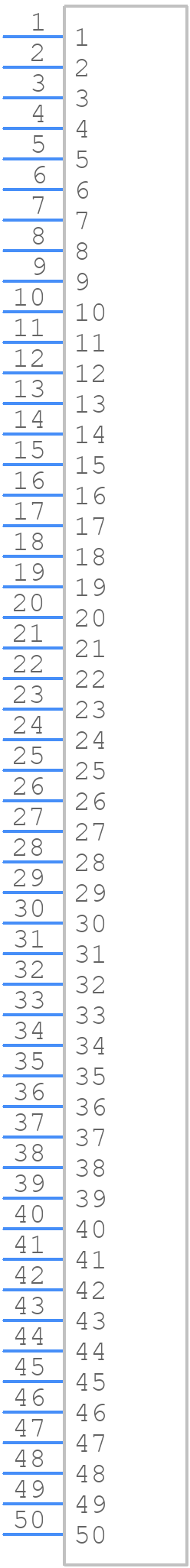

Use the download button to access the TSW-150-14-T-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
