TSX339IDT - STMicroelectronics

Description: Micropower (5uA) 16V CMOS quad comparator, open drain output

Download TSX339IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

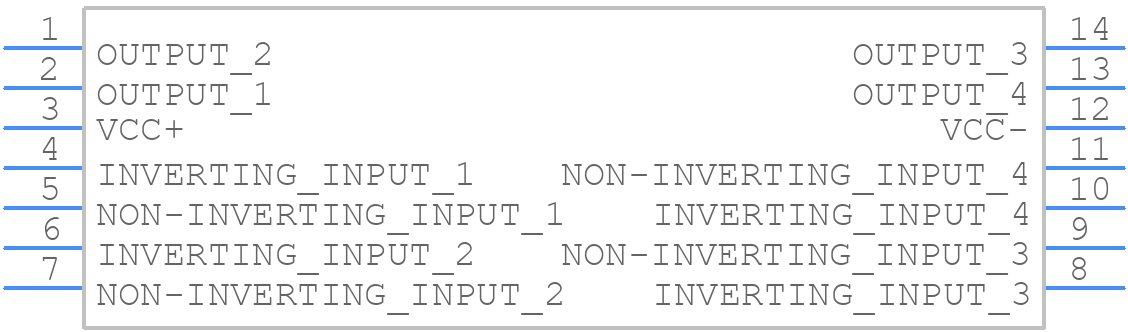

TSX339IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX339IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 14
click to zoom
3D Models
TSX339IDT - STMicroelectronics - 3D model - Small Outline Packages - SO 14
click to zoom

TSX339IDT Details

  • Manufacturer Part Number:

    TSX339IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    SO-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    2500 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TSX339IDT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TSX339IDT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
  • The TSX339IDT is rated for operation from -40°C to 125°C, but it's essential to consider the derating curves and thermal management guidelines in the datasheet to ensure reliable operation over the entire temperature range.
  • The TSX339IDT is a robust device, but it's still important to consider the vibration specifications and ensure that the PCB is properly secured and mechanically robust to withstand the expected vibration levels.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2352, which covers common issues and debugging techniques. Additionally, consider using oscilloscopes, logic analyzers, and other diagnostic tools to identify and resolve issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSX339IDT Overview

Use the download button to access the TSX339IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSX33, or try a keyword search, such as Comparators

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
