TSX339IPT - STMicroelectronics

Description: Micropower (5uA) 16V CMOS quad comparator, open drain output

Download TSX339IPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

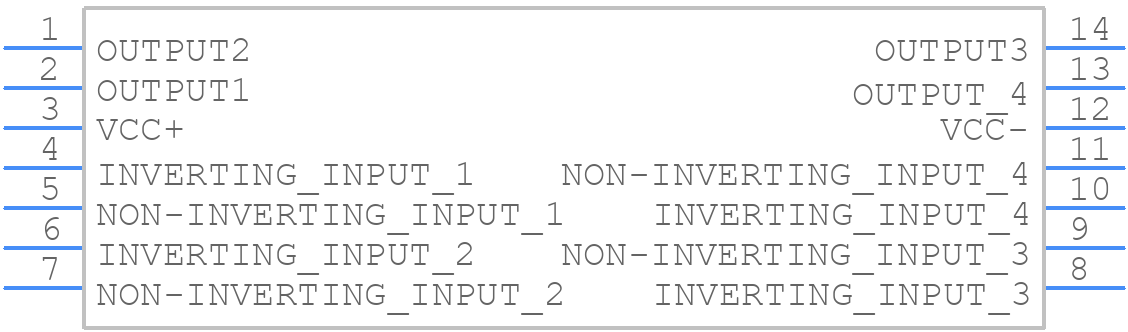

Symbol
TSX339IPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX339IPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSX339IPT
click to zoom
3D Models
TSX339IPT - STMicroelectronics - 3D model - Small Outline Packages - TSX339IPT
click to zoom

TSX339IPT Details

  • Manufacturer Part Number:

    TSX339IPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    2500 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TSX339IPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TSX339IPT has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink or thermal ground plane.
  • The TSX339IPT can operate up to 100 MHz, but the actual operating frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and layout considerations.
  • The TSX339IPT is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for more information on temperature derating and thermal management.
  • To ensure EMC, it's recommended to follow the guidelines in the application note AN2352, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
