TSX339IYPT - STMicroelectronics

Description: Micropower (5uA) 16V CMOS quad comparator, open drain output

Download TSX339IYPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

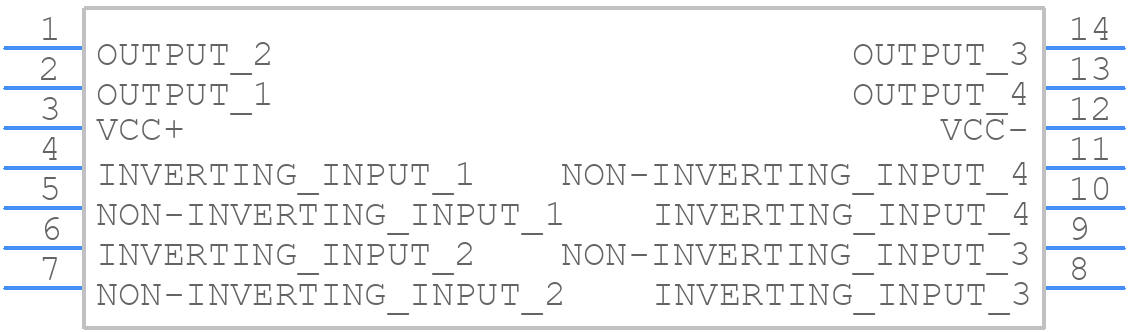

TSX339IYPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX339IYPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - tssop-14
click to zoom
3D Models
TSX339IYPT - STMicroelectronics - 3D model - Small Outline Packages - tssop-14
click to zoom

TSX339IYPT Details

  • Manufacturer Part Number:

    TSX339IYPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    2500 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TSX339IYPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TSX339IYPT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from electrostatic discharge.
  • The TSX339IYPT is rated for operation from -40°C to 125°C, but it's essential to consider the thermal management of the device, especially in high-power applications. Ensure proper heat sinking and thermal design to prevent overheating and ensure reliable operation.
  • Yes, the TSX339IYPT is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • STMicroelectronics provides a range of resources, including application notes, technical notes, and FAQs, to help troubleshoot common issues with the TSX339IYPT. Additionally, consider using debugging tools, such as oscilloscopes and logic analyzers, to identify and resolve problems.
