TSX3704IDT - STMicroelectronics

Description: Micropower (5uA) 16V quad CMOS comparator, push pull output

Download TSX3704IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

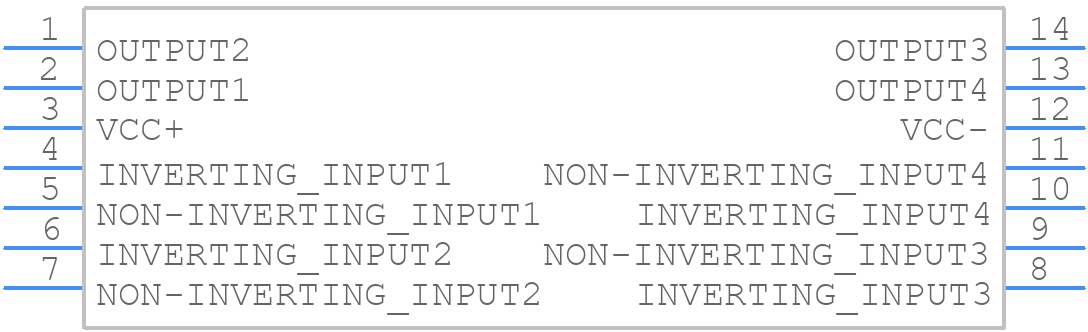

Symbol
TSX3704IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX3704IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - L6494LDTR
click to zoom
3D Models
TSX3704IDT - STMicroelectronics - 3D model - Small Outline Packages - L6494LDTR
click to zoom

TSX3704IDT Details

  • Manufacturer Part Number:

    TSX3704IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    SO-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    2400 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TSX3704IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSX3704IDT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the input and output connections.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range (2.5V to 5.5V) and that the output is properly terminated.
  • The TSX3704IDT can support data rates up to 400 Mbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device (maximum junction temperature is 150°C). Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
  • To prevent ESD damage, handle the device by the body or the pins, avoid touching the pins, use an anti-static wrist strap or mat, and store the device in an anti-static bag or tube.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSX3704IDT Overview

Use the download button to access the TSX3704IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSX37, or try a keyword search, such as Comparators
