Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TSX3704IQ4T - STMicroelectronics

Description: Micropower (5uA) 16V quad CMOS comparator, push pull output

Download TSX3704IQ4T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

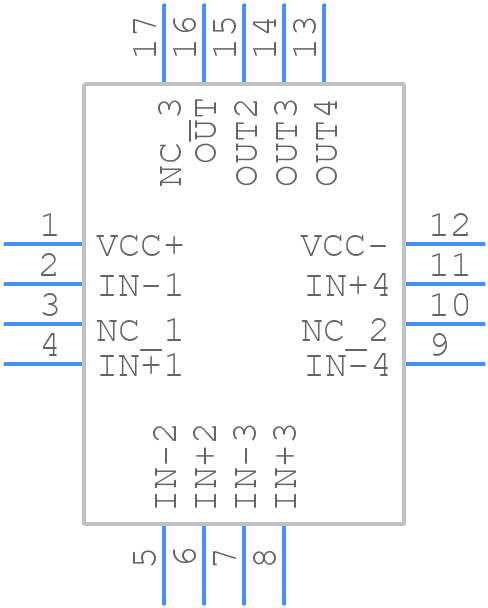

TSX3704IQ4T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX3704IQ4T - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3
click to zoom
3D Models
TSX3704IQ4T - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 3x3
click to zoom

TSX3704IQ4T Details

  • Manufacturer Part Number:

    TSX3704IQ4T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Manufacturer Package Code:

    VFQFPN 16 3x3x0.9

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Response Time-Nom:

    2400 ns

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

TSX3704IQ4T Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSX3704IQ4T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and to keep the device away from other noise-sensitive components.
  • To ensure proper powering and decoupling, connect the VCC pin to a stable 3.3V or 5V power supply, and decouple the VCC pin with a 10uF capacitor to GND. Additionally, place a 100nF capacitor between the VCC pin and GND as close to the device as possible.
  • The TSX3704IQ4T can achieve data rates of up to 100 Mbps, but the actual data rate may vary depending on the specific application, PCB layout, and noise environment.
  • The TSX3704IQ4T can be configured for half-duplex or full-duplex operation by setting the corresponding pins (TXEN and RXEN) high or low. For half-duplex operation, set TXEN high and RXEN low, and for full-duplex operation, set both TXEN and RXEN high.
  • The maximum cable length supported by the TSX3704IQ4T depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters for Category 5e cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSX3704IQ4T Overview

Use the download button to access the TSX3704IQ4T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSX37, or try a keyword search, such as Comparators

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Parts related to TSX3704IQ4T

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
