TSX3704IYPT - STMicroelectronics

Description: Micropower quad CMOS voltage comparators

Download TSX3704IYPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

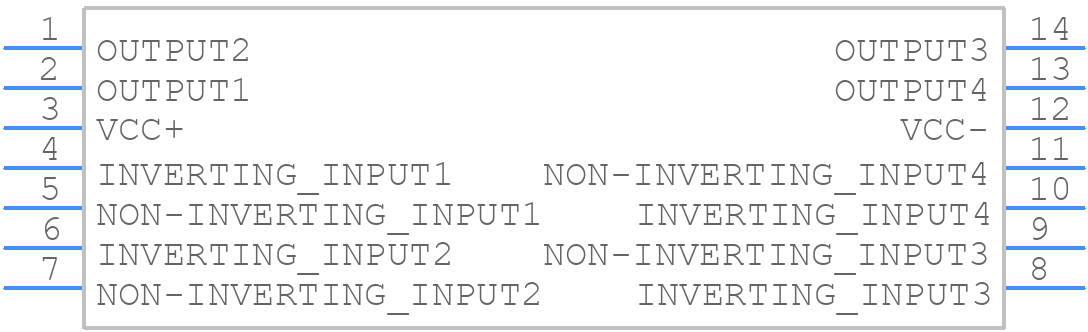

Symbol
TSX3704IYPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX3704IYPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 *
click to zoom
3D Models
TSX3704IYPT - STMicroelectronics - 3D model - Small Outline Packages - TSSOP14 *
click to zoom

TSX3704IYPT Details

  • Manufacturer Part Number:

    TSX3704IYPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    2400 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TSX3704IYPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TSX3704IYPT has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or soldermask.
  • The TSX3704IYPT has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is operated within the recommended temperature range to prevent damage or degradation.
  • The TSX3704IYPT is a highly configurable device, and the configuration depends on the specific application requirements. Refer to the datasheet and application notes for guidance on setting the device's registers, configuring the output stage, and selecting the appropriate operating mode.
  • The TSX3704IYPT has built-in electrostatic discharge (ESD) protection and latch-up prevention mechanisms. However, it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, ensure that the device is powered up and down correctly to prevent latch-up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSX3704IYPT Overview

Use the download button to access the TSX3704IYPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSX37, or try a keyword search, such as Comparators
