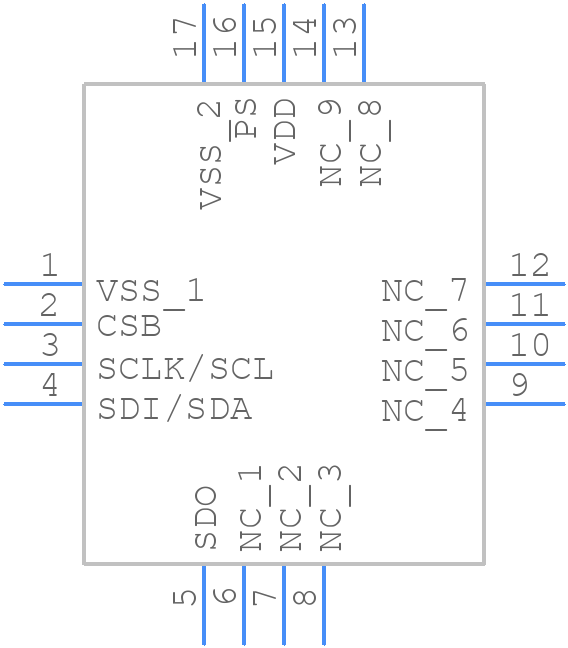

TSYS01 - TE Connectivity

TSYS01 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the TSYS01 involves placing the sensor near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and traces under the sensor.
• How do I calibrate the TSYS01 for high-accuracy temperature measurements?
  The TSYS01 is calibrated during manufacturing, but for high-accuracy applications, users can perform a 2-point or 3-point calibration using a precision temperature reference and a microcontroller or PC-based calibration tool.
• What is the maximum operating temperature range for the TSYS01?
  The TSYS01 is rated for operation from -40°C to 150°C, but it can tolerate short-term excursions up to 180°C. However, prolonged exposure to temperatures above 150°C may affect its accuracy and lifespan.
• How do I handle electromagnetic interference (EMI) and radio-frequency interference (RFI) when using the TSYS01?
  To minimize EMI and RFI, use a shielded cable, keep the sensor away from high-frequency sources, and use a low-pass filter or a ferrite bead on the signal lines. Additionally, ensure good PCB layout practices, such as separating analog and digital grounds.
• What is the typical response time of the TSYS01, and how does it affect my application?
  The TSYS01 has a typical response time of 10-30 seconds, depending on the thermal environment. This response time may affect applications that require fast temperature measurements, such as in high-speed thermal profiling or thermal imaging.
