TT41NGPC9T1/4 - TE Connectivity

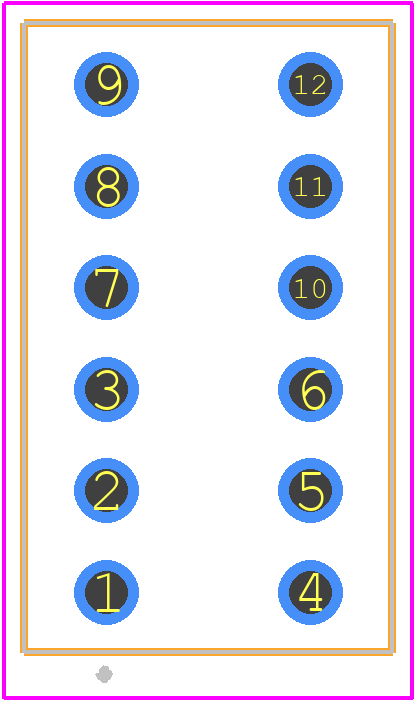

TT41NGPC9T1/4 Details

• Manufacturer Part Number:

  TT41NGPC9T1/4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  29 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Actuator Angle:

  26 deg

• Actuator Finish:

  COPPER ALLOY

• Actuator Length:

  0.41 inch

• Actuator Type:

  BATON LONG TYPE

• Body Breadth:

  9.144 mm

• Body Color:

  BLACK

• Body Height:

  30.226 mm

• Body Length or Diameter:

  10.4 mm

• Bushing Diameter:

  0.28 inch

• Bushing Length:

  0.25 inch

• Bushing Type:

  1/4-40

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(AC)-Max:

  0.02 A

• Contact Current(DC)-Max:

  0.02 A

• Contact (DC) Max Power Rating R Load:

  0.4VA@20VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.02 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  20 V

• Contact Voltage(DC)-Max:

  20 V

• Dielectric Withstand Volts:

  1000 V

• Electrical Life:

  20000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  THERMOPLASTIC

• Mounting Feature:

  PANEL MOUNT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  4PDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.13 inch

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
