TT8J11TCR - ROHM Semiconductor

Description: ROHM TT8J11TCR Dual P-channel MOSFET, 3.5 A, 12 V TT8J11, 8-Pin TSST

Download TT8J11TCR Model
Schematic

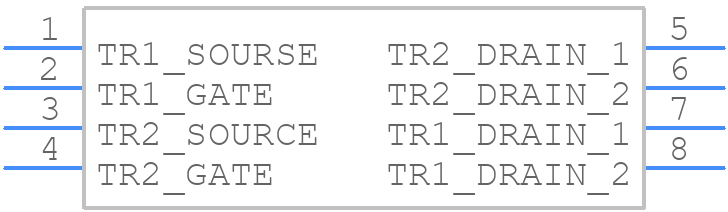

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TT8J11TCR - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - TT8J11TCR_11
click to zoom
3D Models
TT8J11TCR - ROHM Semiconductor  - 3D model - SO Transistor Flat Lead - TT8J11TCR_11
click to zoom

TT8J11TCR Details

  • Manufacturer Part Number:

    TT8J11TCR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSST8, 8 PIN

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    3.5 A

  • Drain-source On Resistance-Max:

    0.043 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TT8J11TCR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TT8J11TCR is 1.65V to 5.5V, as specified in the datasheet.
  • To ensure proper power-on and power-off, follow the power-up and power-down sequences outlined in the datasheet, and make sure to meet the recommended power supply ramp-up and ramp-down times.
  • The maximum current rating for the TT8J11TCR is 100mA, as specified in the datasheet. Exceeding this rating may cause damage to the device.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines outlined in the datasheet.
  • Follow the recommended PCB layout guidelines outlined in the datasheet, including keeping the device away from noise sources, using a solid ground plane, and minimizing trace lengths and widths.
