Part Image

TTC1-33W-75+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TRNSFMR/ SURF MT/

Download TTC1-33W-75+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

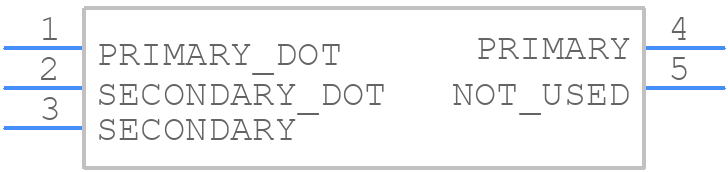

Symbol
TTC1-33W-75+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TTC1-33W-75+ - Mini-Circuits PCB footprint - Other - Other - TTC1-33W-75+-1
click to zoom
3D Models
TTC1-33W-75+ - Mini-Circuits - 3D model - Other - TTC1-33W-75+-1
click to zoom

TTC1-33W-75+ Details

  • Manufacturer Part Number:

    TTC1-33W-75+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    3000 MHz

  • Cut-off Frequency-Min:

    30 MHz

  • Height:

    1.88 mm

  • Insertion Loss:

    3 dB

  • Length:

    2.54 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.42 mm

TTC1-33W-75+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the TTC1-33W-75+ is 85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C to ensure reliable operation.
  • While the TTC1-33W-75+ is designed to operate in a variety of environments, it's not hermetically sealed and may be susceptible to moisture ingress. It's recommended to use conformal coating or potting to protect the device in humid environments.
  • For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN-60-012, which includes recommendations for grounding, decoupling, and signal routing.
  • Yes, the TTC1-33W-75+ can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to avoid uneven current sharing and potential oscillations.
  • The typical lead time for delivery of the TTC1-33W-75+ is 4-6 weeks, but it may vary depending on the quantity and availability. It's recommended to check with Mini-Circuits or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TTC1-33W-75+ Overview

Use the download button to access the TTC1-33W-75+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TTC1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
