TTC2-63W+ - Mini-Circuits

Description: RF Balun 100MHz ~ 6GHz 1:2 5-SMD Module , 50Ohms , -40C +85C

Download TTC2-63W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

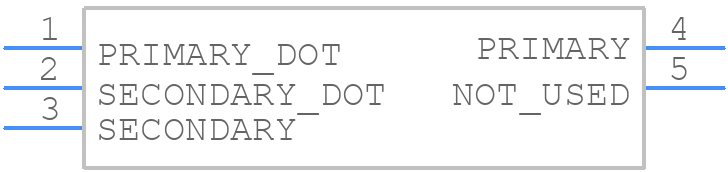

Symbol
TTC2-63W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TTC2-63W+ - Mini-Circuits PCB footprint - Other - Other - GU2939_2024
click to zoom
3D Models
TTC2-63W+ - Mini-Circuits - 3D model - Other - GU2939_2024
click to zoom

TTC2-63W+ Details

  • Manufacturer Part Number:

    TTC2-63W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Cut-off Frequency-Max:

    6000 MHz

  • Cut-off Frequency-Min:

    100 MHz

  • Height:

    1.88 mm

  • Insertion Loss:

    4.5 dB

  • Length:

    2.54 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.42 mm

TTC2-63W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TTC2-63W+ is -40°C to +85°C.
  • Yes, the TTC2-63W+ is designed to operate in a high-humidity environment, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
  • The recommended PCB layout and grounding scheme for the TTC2-63W+ involves using a solid ground plane, placing the device near the edge of the board, and using a low-inductance path for the RF signal.
  • To optimize the performance of the TTC2-63W+, consider factors such as input power, impedance matching, and PCB layout. Consult with a Mini-Circuits application engineer or refer to the application notes for guidance.
  • The typical lead time for delivery of the TTC2-63W+ is 2-4 weeks, but this may vary depending on the quantity and availability. Contact Mini-Circuits for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TTC2-63W+ Overview

Use the download button to access the TTC2-63W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TTC2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
