Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
To ensure reliable operation in high-vibration environments, Cosel recommends securing the module using screws or adhesive, and ensuring that the PCB is properly secured to the chassis or enclosure. Additionally, the module's pins should be soldered securely to the PCB to prevent vibration-induced fatigue.
The maximum allowed capacitance for the output filter is 10uF. Exceeding this value may cause instability or oscillation in the output voltage.
Yes, the TUHS10F15 can be used in a redundant configuration to achieve high availability and reliability. However, it is essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
Cosel recommends using a fuse with a rating of 5A or less to protect the module from input overcurrent conditions. The fuse should be located as close to the input terminals as possible to minimize the risk of damage to the module or surrounding components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUHS10F15 Overview

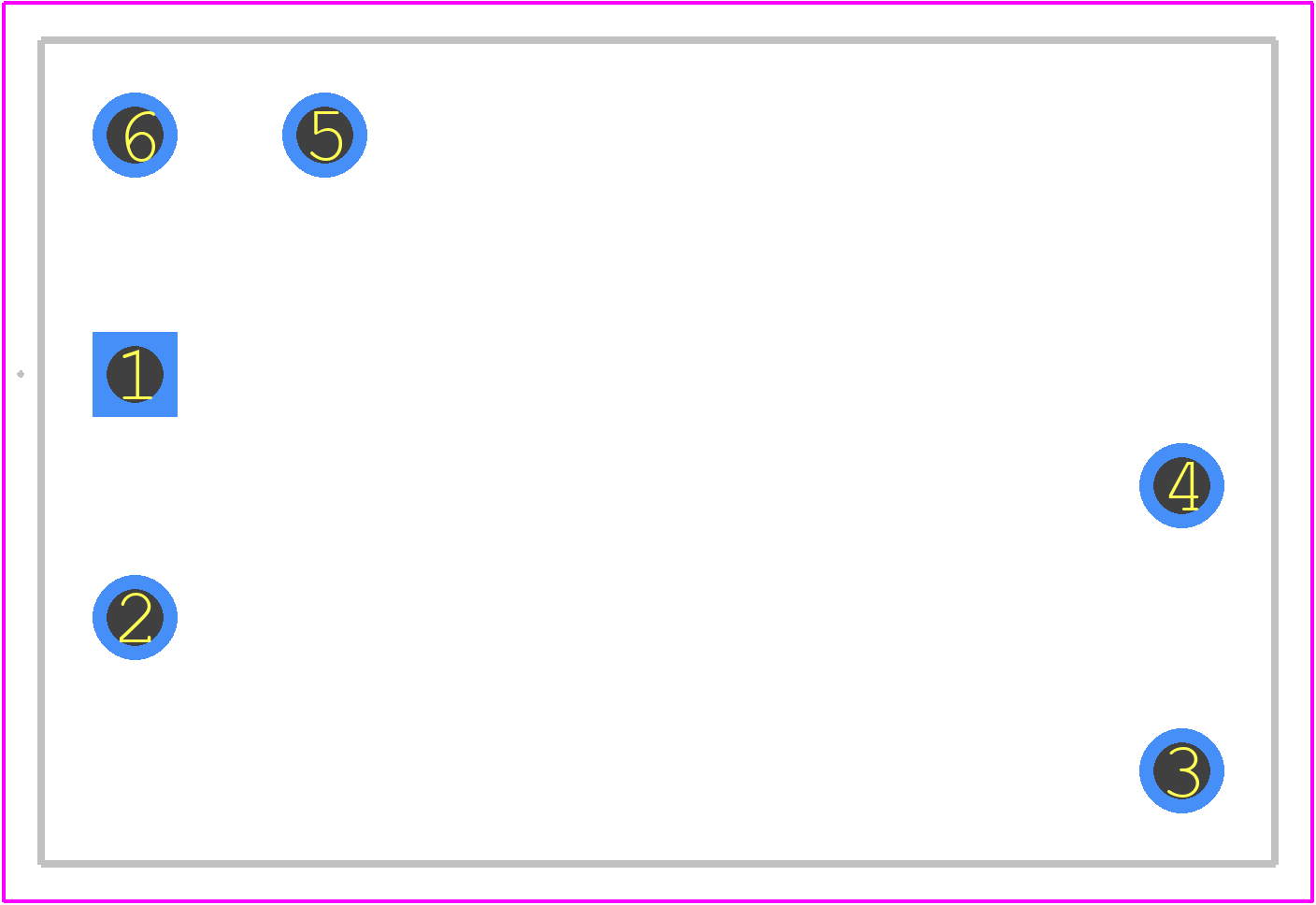

Use the download button to access the TUHS10F15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUHS1,
or try a keyword search, such as Power Supply Modules
