TUHS5F05 - Cosel

Description: Cosel 5W Embedded Switch Mode Power Supply SMPS, 1A, 5V dc

Download TUHS5F05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

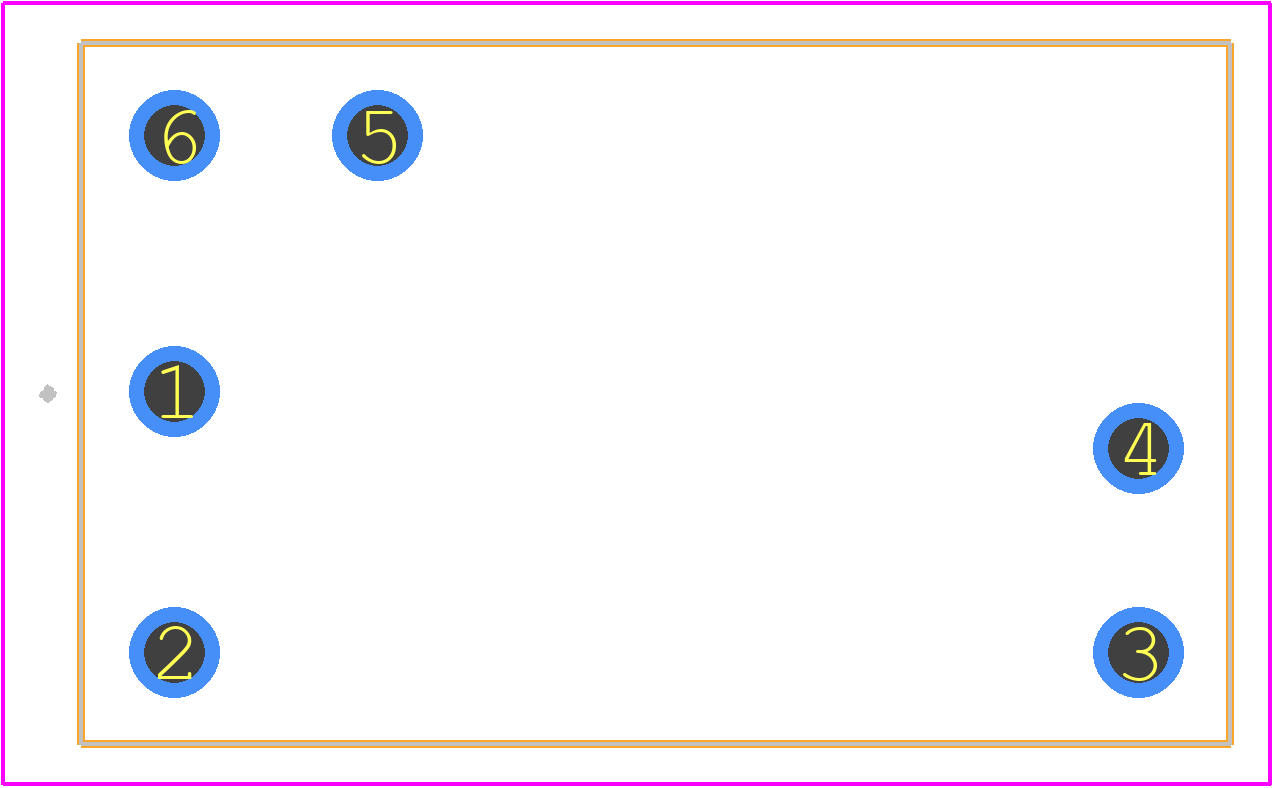

TUHS5F05 - Cosel PCB footprint - Other - Other - TUHS5F05
click to zoom
3D Models
TUHS5F05 - Cosel  - 3D model - Other - TUHS5F05
click to zoom

TUHS5F05 Details

  • Manufacturer Part Number:

    TUHS5F05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    ALSO OPERATES IN 120 TO 370 VDC

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    R-XXMA-P6

  • Length:

    28.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.3 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    17.5 mm

TUHS5F05 Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a 4-layer PCB layout with a dedicated ground plane, and to ensure good thermal conductivity by using thermal vias and a heat sink if necessary. Consult with Cosel USA Inc's application notes for more details.
  • To ensure EMC, follow proper PCB layout and shielding guidelines, use a metal enclosure, and consider adding EMI filters or common-mode chokes as necessary. Consult with Cosel USA Inc's application notes and relevant industry standards for more information.
  • Derating curves can be obtained from Cosel USA Inc's application notes or by contacting their technical support. To apply derating, calculate the maximum allowable output power based on the ambient temperature, and ensure the TUHS5F05 is operated within the recommended specifications.
  • Yes, the TUHS5F05 can be used in redundant or parallel configurations, but it's essential to follow Cosel USA Inc's guidelines for synchronization and current sharing to ensure reliable operation. Consult with their application notes or technical support for more information.
  • Store the TUHS5F05 in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical components. Follow proper electrostatic discharge (ESD) precautions when handling the device.
