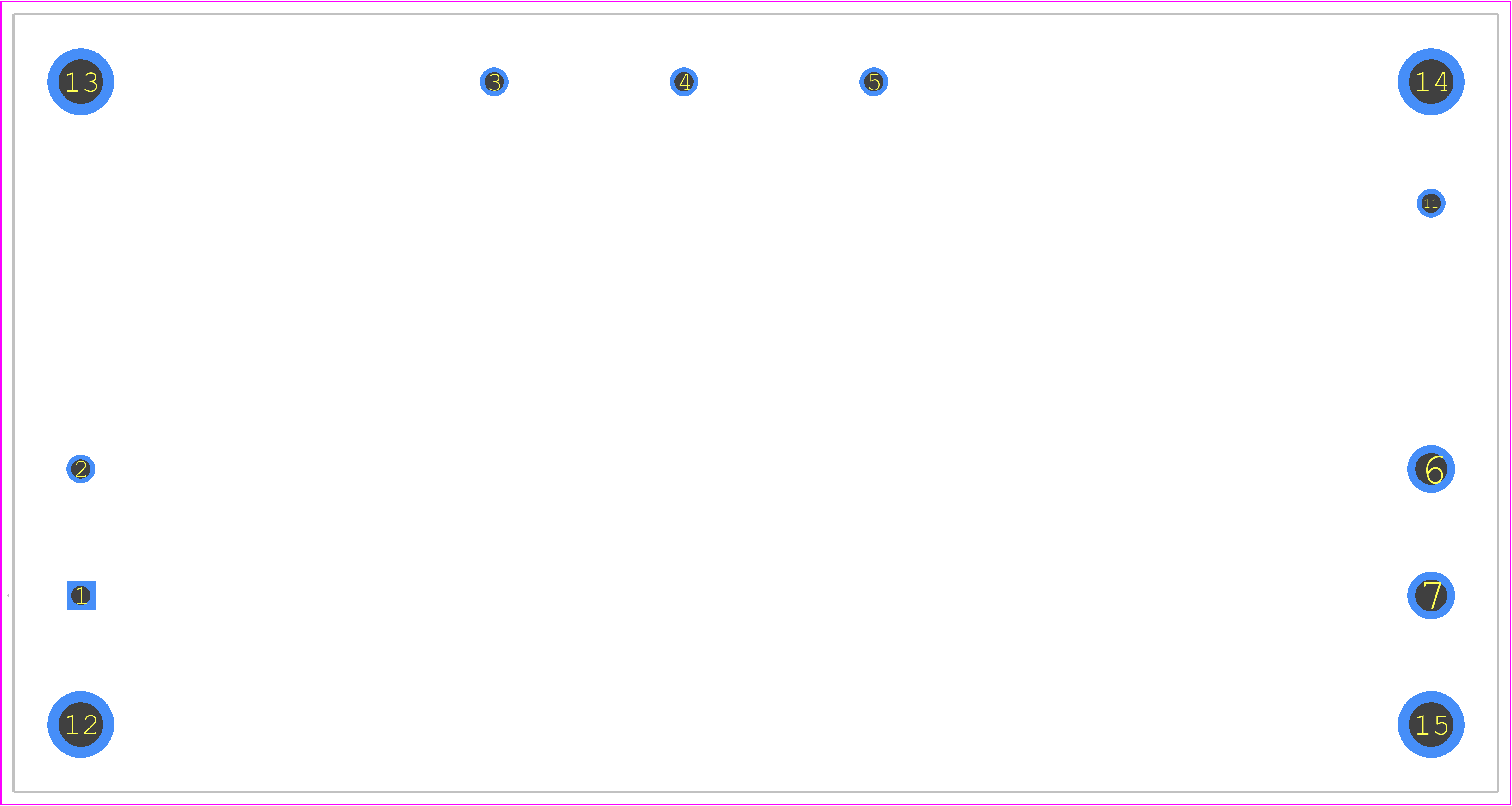

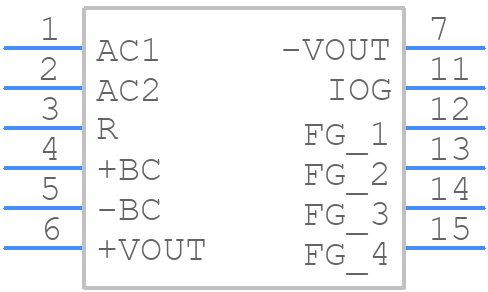

TUNS700F12 Details

• Manufacturer Part Number:

  TUNS700F12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT, MODULE-11

• ECCN Code:

  EAR99

• Date Of Intro:

  2016-10-06

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  7.9

• Additional Feature:

  LG-MAX, WD-MAX

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  C-UL-US, CE, CUL, EN, IEC, UKCA, UL

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  100 V

• JESD-30 Code:

  R-XXMA-P11

• Length:

  117.3 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  58.4 A

• Output Voltage-Max:

  14.4 V

• Output Voltage-Min:

  9.6 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Equivalence Code:

  MODULE,11LEAD(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER CURRENT, OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  15

• Total Power Output-Max:

  700.8 W

• Trim/Adjustable Output:

  YES

• Width:

  61.5 mm
