TX-2-5-1+ footprint, schematic symbol and 3D model by Mini-Circuits

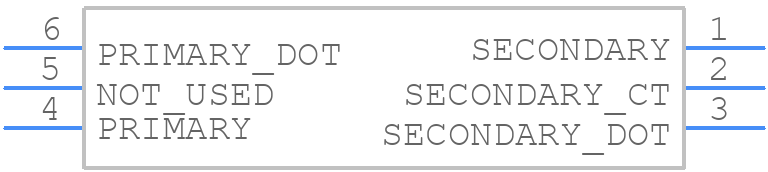

Symbol

click to zoom

PCB Footprints

TX-2-5-1+ - Mini-Circuits PCB footprint - Other - Other - TX-2-5-1+-1

click to zoom

3D Models

TX-2-5-1+ - Mini-Circuits - 3D model - Other - TX-2-5-1+-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TX-2-5-1+
Part Number TX-2-5-1+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - TX-2-5-1+-1
Released Date Nov 13, 2017
Last Modified Date Sep 30, 2025 11:35 AM UTC
Pinout / Pin List Click Here (Member Only)

TX-2-5-1+ Details

Manufacturer Part Number:
TX-2-5-1+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
5.5
Additional Feature:
HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL
Application:
SIGNAL
Cut-off Frequency-Min:
20 MHz
DC Unbalance Current-Max:
30 mA
Height:
5.08 mm
Insertion Loss:
2.5 dB
JESD-609 Code:
e4
Length:
7.87 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
1100000 kHz
Operating Frequency-Min:
30000 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR, 13 INCH
Power Rating:
0.25 W
Surface Mount:
YES
Terminal Finish:
GOLD OVER NICKEL
Transformer Type:
RF TRANSFORMER
Width:
6.35 mm

TX-2-5-1+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a 50-ohm microstrip transmission line for the RF signal path. The device should be placed near the edge of the board to minimize signal reflections.
The TX-2-5-1+ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking the airflow around the device with nearby components.
The TX-2-5-1+ is designed for 50-ohm input and output impedance. Ensure that the input and output networks are matched to 50 ohms to achieve optimal performance and minimize reflections.
Yes, the TX-2-5-1+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.
The TX-2-5-1+ is specified for operation up to 5 GHz, but it can be used at higher frequencies with some degradation in performance. However, the device's performance and reliability may be affected at frequencies above 5 GHz.

Trust Checks

Expert Contribution

System Verified

Community Approved

TX-2-5-1+ Overview

Use the download button to access the TX-2-5-1+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TX-2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
