TX2-4.5V-TH footprint, schematic symbol and 3D model by Panasonic

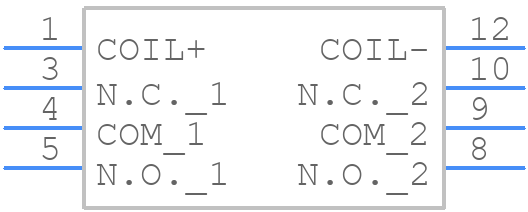

Symbol

click to zoom

PCB Footprints

TX2-4.5V-TH - Panasonic PCB footprint - Other - Other - TX2xTH

click to zoom

3D Models

TX2-4.5V-TH - Panasonic - 3D model - Other - TX2xTH

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TX2-4.5V-TH
Part Number TX2-4.5V-TH
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - TX2xTH
Released Date Jan 21, 2026
Last Modified Date Mar 31, 2026 12:14 PM UTC
Pinout / Pin List Click Here (Member Only)

TX2-4.5V-TH Details

Manufacturer Part Number:
TX2-4.5V-TH
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Panasonic Electronic Components
YTEOL:
6
Body Breadth:
7.4 mm
Body Height:
8.2 mm
Body Length or Diameter:
15 mm
Coil Current(DC)-Max:
0.031 A
Coil Operate Voltage(DC):
3.38 V
Coil Power:
140 mW
Coil Release Voltage(DC):
0.45 V
Coil Resistance:
145 Ω
Coil Voltage(DC)-Max:
4.5 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
7.5A@250VAC
Contact Current(AC)-Max:
7.5 A
Contact Current(DC)-Max:
7.5 A
Contact (DC) Max Rating R Load:
7.5A@220VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
220 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
4 ms
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX; TUBE
Physical Dimension:
15mm x 7.4mm x 8.2mm
Reference Standard:
BSI; CSA; UL
Relay Action:
MOMENTARY
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

TX2-4.5V-TH Frequently Asked Questions (FAQs)

The recommended storage condition for TX2-4.5V-TH is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight, high temperature, or high humidity environments.
While TX2-4.5V-TH is designed to be robust, it's still important to consider the vibration environment. Panasonic recommends following the IEC 60068-2-6 standard for vibration testing. If the vibration exceeds this standard, additional testing or consultation with Panasonic is recommended.
When soldering TX2-4.5V-TH, use a soldering iron with a temperature below 350°C and avoid applying excessive force or pressure. Also, ensure the soldering time is within the recommended 3 seconds to prevent damage to the component.
Yes, TX2-4.5V-TH is compatible with lead-free soldering. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable connections.
Panasonic provides a recommended PCB layout and land pattern for TX2-4.5V-TH in their application notes or datasheet. It's essential to follow these guidelines to ensure proper mounting and reliable connections.

Trust Checks

Expert Contribution

System Verified

Community Approved

TX2-4.5V-TH Overview

Use the download button to access the TX2-4.5V-TH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TX2-4, or try a keyword search, such as Power/Signal Relays
