A good PCB layout for the TX2-48V involves keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output cables. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves, ensure good airflow, and avoid exceeding the maximum operating temperature of 85°C. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
The TX2-48V has built-in EMI filtering, but additional filtering may be required depending on the application. A common-mode choke and X-capacitors can be added to the input and output lines to improve EMI performance. Consult the datasheet and relevant EMI standards for specific requirements.
Yes, the TX2-48V can be used in redundant or parallel configurations to improve system reliability and increase power output. However, it's essential to follow the recommended configuration guidelines and ensure proper synchronization and control of the modules.
The TX2-48V is designed to meet various safety standards, including UL, EN, and IEC. Ensure proper installation, wiring, and insulation to prevent electrical shock, fire, or other hazards. Follow the safety guidelines and precautions outlined in the datasheet and relevant safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-48V Overview

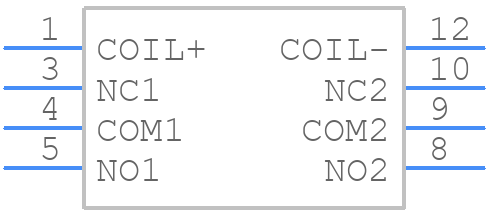

Use the download button to access the TX2-48V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-4,
or try a keyword search, such as Power/Signal Relays
