TX2-L2-12V - Panasonic

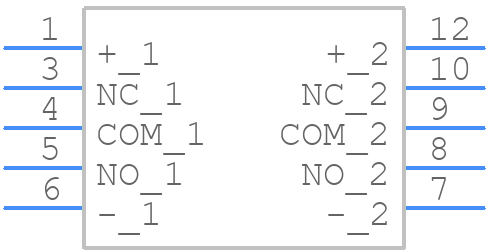

TX2-L2-12V Details

• Manufacturer Part Number:

  TX2-L2-12V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7.87

• Body Breadth:

  7.4 mm

• Body Height:

  8.2 mm

• Body Length or Diameter:

  15 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  9 V

• Coil Resistance:

  720 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@220VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  4 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TUBE

• Physical Dimension:

  15mm x 7.4mm x 8.2mm

• Reference Standard:

  BSI; CSA; UL

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Sealing:

  WATER PROOF

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
