Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through their sales representatives. It's essential to follow these guidelines to ensure proper mounting, thermal management, and electrical performance.
To ensure the relay module operates within its specified temperature range, it's crucial to provide adequate heat dissipation, such as using a heat sink or thermal interface material, and to avoid exposing the module to extreme temperatures during storage or operation.
The recommended derating curve for the TX2SA-L2-24V-1-X relay module can be found in Panasonic's application notes or design guides. The derating curve provides guidance on reducing the relay's switching capacity as the ambient temperature increases to prevent overheating and ensure reliable operation.
While the TX2SA-L2-24V-1-X relay module is designed to be robust, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic may provide additional information or recommendations for such applications, and it's recommended to consult with their technical support or application engineers.
To prevent EMI when using the TX2SA-L2-24V-1-X relay module, it's recommended to follow proper PCB design and layout practices, such as using shielding, grounding, and decoupling techniques. Additionally, ensuring proper wiring and cable management can help minimize EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SA-L2-24V-1-X Overview

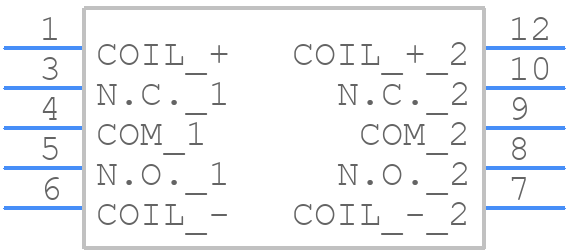

Use the download button to access the TX2SA-L2-24V-1-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2SA,
or try a keyword search, such as Power/Signal Relays
