TX2SA-L2-24V-TH-Z - Panasonic

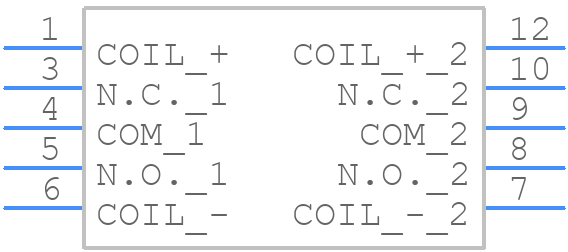

TX2SA-L2-24V-TH-Z Details

• Manufacturer Part Number:

  TX2SA-L2-24V-TH-Z

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  5.5

• Additional Feature:

  LOW PROFILE

• Body Breadth:

  7.4 mm

• Body Height:

  8.2 mm

• Body Length or Diameter:

  15 mm

• Coil Current(DC)-Max:

  0.006 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  140 mW

• Coil Release Voltage(DC):

  18 V

• Coil Resistance:

  4114 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  7.5A@250VAC

• Contact Current(AC)-Max:

  7.5 A

• Contact Current(DC)-Max:

  7.5 A

• Contact (DC) Max Rating R Load:

  7.5A@220VDC

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Operate Time:

  4 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TAPE AND REEL

• Physical Dimension:

  15mm x 7.4mm x 8.2mm

• Reference Standard:

  BSI; CSA; UL

• Relay Action:

  LATCHED

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Sealing:

  WATER PROOF

• Surface Mount:

  NO

• Termination Type:

  SOLDER
