TX2SA-LT-2.4V-TH-Z footprint, schematic symbol and 3D model by Panasonic

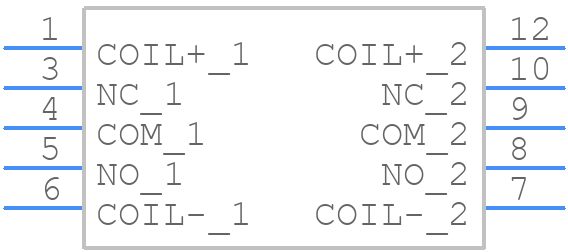

Symbol

click to zoom

PCB Footprints

TX2SA-LT-2.4V-TH-Z - Panasonic PCB footprint - Other - Other - TX2SA-LT-2.4V-TH-Z-1

click to zoom

3D Models

TX2SA-LT-2.4V-TH-Z - Panasonic - 3D model - Other - TX2SA-LT-2.4V-TH-Z-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TX2SA-LT-2.4V-TH-Z
Part Number TX2SA-LT-2.4V-TH-Z
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - TX2SA-LT-2.4V-TH-Z-1
Released Date Oct 11, 2023
Last Modified Date Oct 11, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TX2SA-LT-2.4V-TH-Z Details

Manufacturer Part Number:
TX2SA-LT-2.4V-TH-Z
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
18 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
7.4 mm
Body Height:
8.2 mm
Body Length or Diameter:
15 mm
Coil Voltage-Nom:
2.4 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
7.5A@250VAC
Contact Current(AC)-Max:
7.5 A
Contact Current(DC)-Max:
7.5 A
Contact (DC) Max Rating R Load:
7.5A@220VDC
Contact Resistance:
100 mΩ
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
220 V
Contact/Output Supply Type:
AC/DC
End Contact Material:
Silver
End Contact Plating:
GOLD
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
SURFACE MOUNT-STRAIGHT
Operate Time:
4 ms
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TRAY
Physical Dimension:
15mm x 7.4mm x 8.2mm
Reference Standard:
BSI; CSA; UL
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
RT3
Surface Mount:
NO
Termination Type:
SOLDER

TX2SA-LT-2.4V-TH-Z Frequently Asked Questions (FAQs)

The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the thermistor.
To ensure accuracy, it's crucial to follow proper installation and mounting guidelines. The thermistor should be mounted in a way that ensures good thermal contact with the target surface, and the leads should be kept as short as possible to minimize thermal gradients.
The maximum power rating of the TX2SA-LT-2.4V-TH-Z is 10 mW. Exceeding this power rating can cause damage to the thermistor or affect its accuracy.
While the TX2SA-LT-2.4V-TH-Z is designed to operate in a wide temperature range (-40°C to 150°C), it's essential to take precautions when using it in high-humidity or high-temperature environments. Consider using a conformal coating or potting the thermistor to protect it from moisture and extreme temperatures.
The recommended wire size is 30 AWG or larger, and the material should be a low-thermal-conductivity wire, such as copper or a copper alloy, to minimize thermal gradients and ensure accurate temperature measurement.
