Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 100nF) close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure reliability, follow Panasonic's recommended operating temperature range (–40°C to +125°C), use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal pad to dissipate heat.
The maximum allowable voltage for the TX2SS-L2-9V is 10V, which is the absolute maximum rating. However, for reliable operation, it is recommended to operate the device within the recommended voltage range of 7V to 9V.
Yes, the TX2SS-L2-9V is designed to withstand vibrations. However, it is essential to follow Panasonic's recommended mounting and soldering procedures to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mount to minimize the impact of vibrations.
To troubleshoot issues, start by verifying the power supply voltage, checking for proper PCB layout and soldering, and ensuring that the device is operated within the recommended temperature range. Use a multimeter or an oscilloscope to measure voltage and current, and consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SS-L2-9V Overview

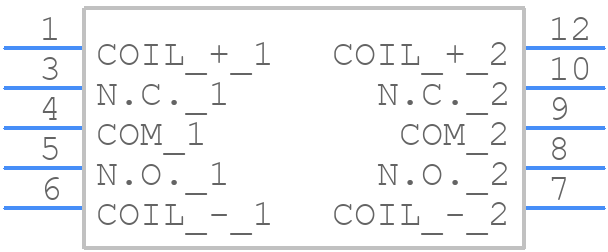

Use the download button to access the TX2SS-L2-9V schematic symbol, PCB footprint, and 3D model.
