Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power consumption, ambient temperature, and thermal resistance. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's guidelines for high-temperature operation.
Panasonic provides a derating curve in their datasheet, which shows the recommended reduction in coil voltage and current as the ambient temperature increases. Follow this curve to ensure the relay operates within its specified ratings.
While the TXD2SA-12V is a high-reliability relay, it's essential to evaluate its suitability for safety-critical applications. Consult with Panasonic's application engineers and follow relevant safety standards, such as IEC 61508, to ensure the relay meets the required safety integrity levels.
To minimize EMI, use a shielded cable for the coil connections, keep the relay away from sensitive circuits, and follow good PCB design practices, such as using a ground plane and minimizing loop areas.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXD2SA-12V Overview

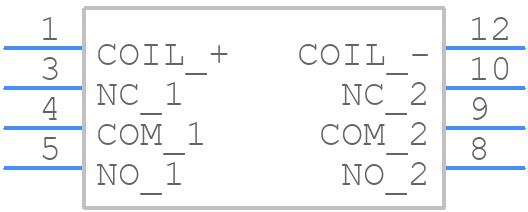

Use the download button to access the TXD2SA-12V schematic symbol, PCB footprint, and 3D model.
