The recommended storage condition for TXD2SA-L-4.5V-Z is to store them in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -30°C to 60°C and humidity below 70%. This helps to prevent degradation and ensures optimal performance.
Yes, the TXD2SA-L-4.5V-Z is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 200Hz, making it suitable for use in high-vibration applications such as industrial equipment and automotive systems.
When soldering the TXD2SA-L-4.5V-Z, it's essential to follow the recommended soldering conditions: temperature below 260°C, soldering time less than 3 seconds, and avoid applying excessive force or pressure. This helps prevent damage to the component and ensures reliable connections.
Yes, the TXD2SA-L-4.5V-Z is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
The typical operating life of the TXD2SA-L-4.5V-Z is approximately 10,000 hours at an operating temperature of 60°C, with a tolerance of ±10%. However, this may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXD2SA-L-4.5V-Z Overview

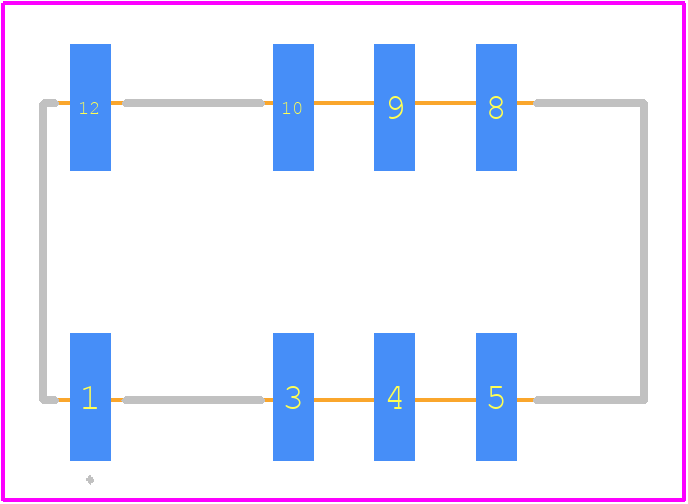

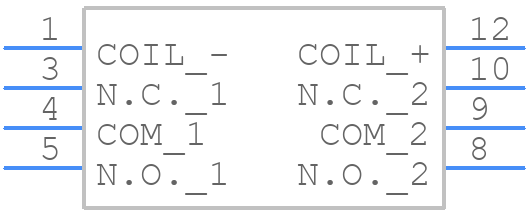

Use the download button to access the TXD2SA-L-4.5V-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXD2S,
or try a keyword search, such as Power/Signal Relays
