Panasonic recommends a PCB layout with a solid ground plane, short and direct connections to the power supply, and a decoupling capacitor (e.g., 100nF) close to the device to minimize noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended operating conditions, use a heat sink if necessary, and consider derating the device's power consumption according to the temperature derating curve provided in the datasheet.
Although the TXD2SS-5V-Z is rated for 5V operation, the input pins can tolerate up to 6V without damage. However, it's essential to ensure that the input voltage does not exceed 6V to prevent damage or malfunction.
Yes, the TXD2SS-5V-Z can be used in switching regulator applications. However, it's crucial to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Additionally, follow Panasonic's recommended layout and design guidelines for switching regulator applications.
The typical turn-on and turn-off times for the TXD2SS-5V-Z are around 10-20 ns. However, these times may vary depending on the specific application, PCB layout, and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXD2SS-5V-Z Overview

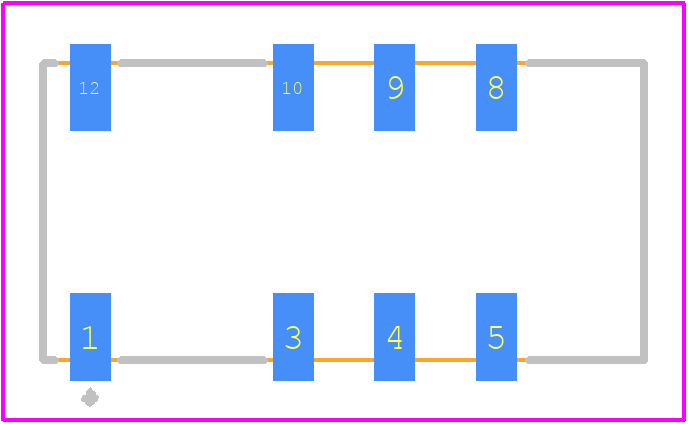

Use the download button to access the TXD2SS-5V-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXD2S,
or try a keyword search, such as Power/Signal Relays
