Panasonic recommends a PCB layout with a solid ground plane, short and direct connections to the power supply, and a decoupling capacitor (e.g., 100nF) between the VCC and GND pins to minimize noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended operating conditions, use a heat sink if necessary, and consider using a thermally conductive material (e.g., thermal tape or thermal grease) to improve heat dissipation.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
Yes, the TXD2SS-5V can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Additionally, consider using a low-ESR capacitor (e.g., ceramic or film capacitor) to minimize voltage ripple.
The typical turn-on and turn-off times for the TXD2SS-5V are around 10-20 ns, but this can vary depending on the specific application, PCB layout, and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXD2SS-5V Overview

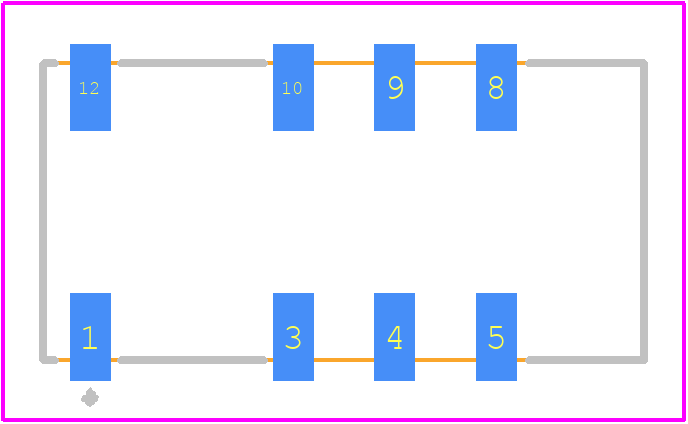

Use the download button to access the TXD2SS-5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXD2S,
or try a keyword search, such as Power/Signal Relays
