Part Image

TXM-418-LR - TE Connectivity

Description: Radio Modules, Radio Module Product Type = RF Module, Interconnection Type = Serial, Interface Data Rate = .1 – 10 (Kb/s)

Download TXM-418-LR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

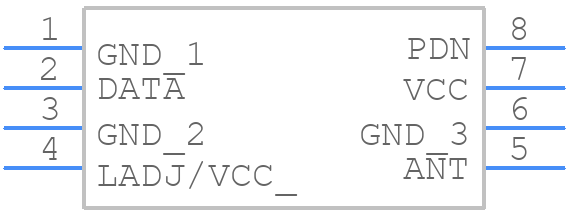

Symbol
TXM-418-LR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
TXM-418-LR - TE Connectivity PCB footprint - Other - Other - 8-SMD Module_2024-2
click to zoom
3D Models
TXM-418-LR - TE Connectivity - 3D model - Other - 8-SMD Module_2024-2
click to zoom

TXM-418-LR Details

  • Manufacturer Part Number:

    TXM-418-LR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    TE Connectivity

  • Consumer IC Type:

    TRANSMITTER IC

  • JESD-30 Code:

    R-PDMA-N18

  • Length:

    20.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.12 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transmission Media:

    RF

  • Width:

    16 mm

TXM-418-LR Frequently Asked Questions (FAQs)

  • The recommended torque for the TXM-418-LR connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw-locking mechanism.
  • Yes, the TXM-418-LR is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the TXM-418-LR is part of the TE Connectivity's TXM series, which is designed to be compatible with other TE Connectivity products, including cables, connectors, and antennas.
  • The operating temperature range of the TXM-418-LR is -40°C to +85°C (-40°F to +185°F), making it suitable for use in a wide range of environments.
  • Yes, the TXM-418-LR is designed for outdoor use, with a rating of IP67 (dust-tight and water-resistant up to 1 meter for 30 minutes).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TXM-418-LR Overview

Use the download button to access the TXM-418-LR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXM-4, or try a keyword search, such as Remote Control ICs

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
