TE Connectivity provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and prevent electromagnetic interference (EMI).
To ensure reliable connections, follow proper assembly and soldering techniques. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste. Avoid applying excessive force or bending the module during assembly, as this can cause damage to the internal components.
The operating temperature range for the TXM-433-LR module is -40°C to +85°C. However, it's essential to note that the module's performance may degrade at extreme temperatures, and it's recommended to operate within the specified temperature range for optimal performance.
The TXM-433-LR module is not designed for use in humid or high-moisture environments. It's recommended to use the module in a dry, clean environment to prevent moisture-related issues. If you need to use the module in a humid environment, consider using additional protection measures such as conformal coating or hermetic sealing.
To troubleshoot issues with the TXM-433-LR module, start by checking the power supply, signal connections, and antenna configuration. Use a spectrum analyzer or signal generator to verify the module's transmission and reception. Consult the datasheet and application notes for troubleshooting guidelines, and contact TE Connectivity's technical support if necessary.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
TXM-433-LR Overview

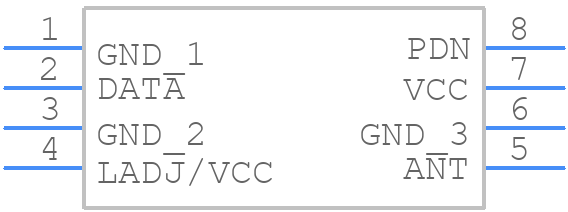

Use the download button to access the TXM-433-LR 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
