TXS2-24V - Panasonic

Description: High sensitivity, 50 mW operating power, 2 Form C and 1 A relays

Download TXS2-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

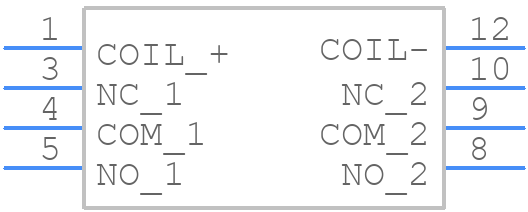

Symbol
TXS2-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TXS2-24V - Panasonic PCB footprint - Other - Other - TX2-24V_1
click to zoom
3D Models
TXS2-24V - Panasonic - 3D model - Other - TX2-24V_1
click to zoom

TXS2-24V Details

  • Manufacturer Part Number:

    TXS2-24V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.5

  • Body Breadth:

    7.4 mm

  • Body Height:

    8.2 mm

  • Body Length or Diameter:

    15 mm

  • Coil Current(DC)-Max:

    0.002 A

  • Coil Operate Voltage(DC):

    19.2 V

  • Coil Power:

    70 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    8229 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Power Rating R Load:

    30W@110VDC

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    200000 Cycle(s)

  • End Contact Material:

    Silver

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    8

  • Operate Time:

    5 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    15mm x 7.4mm x 8.2mm

  • Reference Standard:

    BSI; CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003500127000254001 inch

  • Termination Type:

    SOLDER

TXS2-24V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the TXS2-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The TXS2-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
  • Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure proper heat dissipation and to prevent electrical noise interference.
  • The TXS2-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
  • Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.
