Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10uF) between the input and ground to minimize noise and ensure stable operation.
While the TXS2-L2-12V-1 is rated for operation up to 85°C, it's essential to consider the derating curve and ensure the device doesn't exceed its maximum junction temperature (125°C) to maintain reliability and prevent thermal runaway.
Follow Panasonic's recommended soldering conditions: use a soldering iron with a temperature of 350°C max, and a soldering time of 3 seconds max. Ensure the component is properly aligned and the solder fillet is smooth and shiny to prevent cold joints.
Lead time and MOQ (Minimum Order Quantity) may vary depending on the region, distributor, and availability. Typically, the lead time is around 12-16 weeks, and the MOQ is 1,000-2,000 pieces. It's best to check with authorized distributors or Panasonic's sales representatives for the most up-to-date information.
While there may not be an exact equivalent part, similar products from other manufacturers like TDK, Murata, or Coilcraft can be considered. However, it's crucial to review the datasheet and ensure the substitute part meets the specific requirements of your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS2-L2-12V-1 Overview

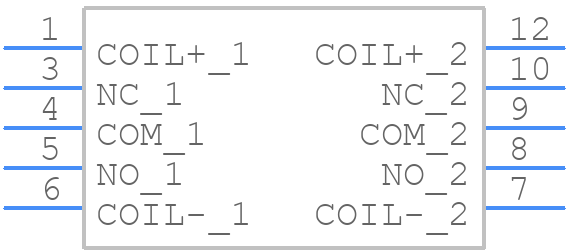

Use the download button to access the TXS2-L2-12V-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS2-,
or try a keyword search, such as Power/Signal Relays
