TXS2SA-L2-4.5V-Z footprint, schematic symbol and 3D model by Panasonic

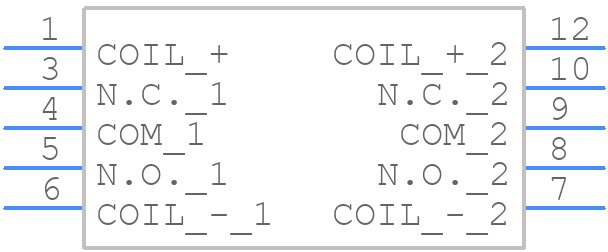

Symbol

click to zoom

PCB Footprints

TXS2SA-L2-4.5V-Z - Panasonic PCB footprint - Other - Other - SA_10_Pin

click to zoom

3D Models

TXS2SA-L2-4.5V-Z - Panasonic - 3D model - Other - SA_10_Pin

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TXS2SA-L2-4.5V-Z
Part Number TXS2SA-L2-4.5V-Z
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SA_10_Pin
Released Date Jan 21, 2026
Last Modified Date Mar 19, 2026 3:52 PM UTC
Pinout / Pin List Click Here (Member Only)

TXS2SA-L2-4.5V-Z Details

Manufacturer Part Number:
TXS2SA-L2-4.5V-Z
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
18 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
6.85
Body Breadth:
7.4 mm
Body Height:
8.2 mm
Body Length or Diameter:
15 mm
Coil Current(DC)-Max:
0.015 A
Coil Operate Voltage(DC):
3.6 V
Coil Power:
70 mW
Coil Release Voltage(DC):
3.6 V
Coil Resistance:
289 Ω
Coil Voltage(DC)-Max:
4.5 V
Coil Voltage-Nom:
4.5 V
Coil/Input Supply Type:
DC
Contact Current(DC)-Max:
1 A
Contact (DC) Max Power Rating R Load:
30W@110VDC
Contact (DC) Max Rating R Load:
1A@110VDC
Contact Resistance:
100 mΩ
Contact Voltage(DC)-Max:
110 V
Contact/Output Supply Type:
DC
Electrical Life:
200000 Cycle(s)
End Contact Material:
Silver
End Contact Plating:
GOLD
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
SURFACE MOUNT-STRAIGHT
Number of Terminals:
10
Operate Time:
5 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TAPE AND REEL
Physical Dimension:
15mm x 7.4mm x 8.2mm
Reference Standard:
BSI; CSA; UL
Relay Action:
LATCHED
Relay Form:
2 FORM C
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Surface Mount:
NO
Termination Type:
SOLDER

TXS2SA-L2-4.5V-Z Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The TXS2SA-L2-4.5V-Z has a high power dissipation rating. Ensure proper thermal management by providing a sufficient heat sink, using thermal vias, and keeping the component away from heat-sensitive components. Consult Panasonic's thermal management guidelines for more information.
Panasonic provides a recommended soldering profile in their datasheet or application notes. It's crucial to follow this profile to prevent damage to the component during the soldering process.
The TXS2SA-L2-4.5V-Z is designed for general-purpose use, but it may not be suitable for high-vibration or high-shock environments. Consult Panasonic's reliability and environmental testing data to determine its suitability for your specific application.
Panasonic provides reliability data, such as MTBF (Mean Time Between Failures) and FIT (Failure In Time) rates, in their datasheet or reliability reports. Consult these resources to determine the expected lifespan and reliability of the TXS2SA-L2-4.5V-Z in your specific application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TXS2SA-L2-4.5V-Z Overview

Use the download button to access the TXS2SA-L2-4.5V-Z schematic symbol, PCB footprint, and 3D model.
