Panasonic recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure stable operation. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow Panasonic's recommended operating temperature range (-40°C to 125°C) and derate the voltage regulator's output current accordingly. Additionally, ensure good thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature below 125°C.
Although the recommended input voltage range is 2.7V to 5.5V, the TXS2SA-LT-4.5V-1 can withstand up to 6.5V without damage. However, operating the device above the recommended range may affect its performance and reliability.
Yes, the TXS2SA-LT-4.5V-1 is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5 μA. However, ensure that the input voltage remains within the recommended range, and consider adding over-voltage protection and undervoltage lockout (UVLO) circuits to prevent damage from battery voltage fluctuations.
To troubleshoot issues with the TXS2SA-LT-4.5V-1, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling capacitors, and thermal management. Use an oscilloscope to monitor the output voltage and current, and consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS2SA-LT-4.5V-1 Overview

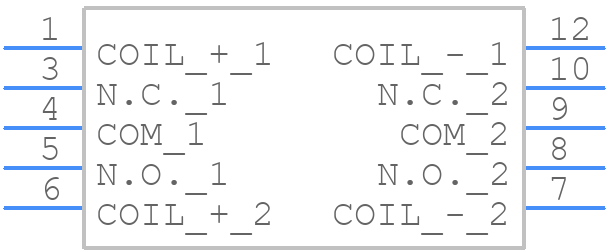

Use the download button to access the TXS2SA-LT-4.5V-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS2S,
or try a keyword search, such as Power/Signal Relays
