TY-141P - Triad Magnetics

Description: TRIAD MAGNETICS - TY-141P - Audio Transformer, Line Matching, 4 mA, 10 kohm, 10 kohm, Through Hole, TY-14x Series

Download TY-141P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

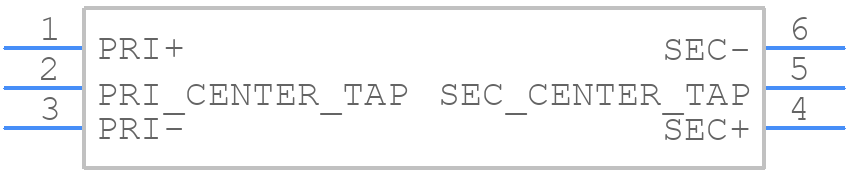

TY-141P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

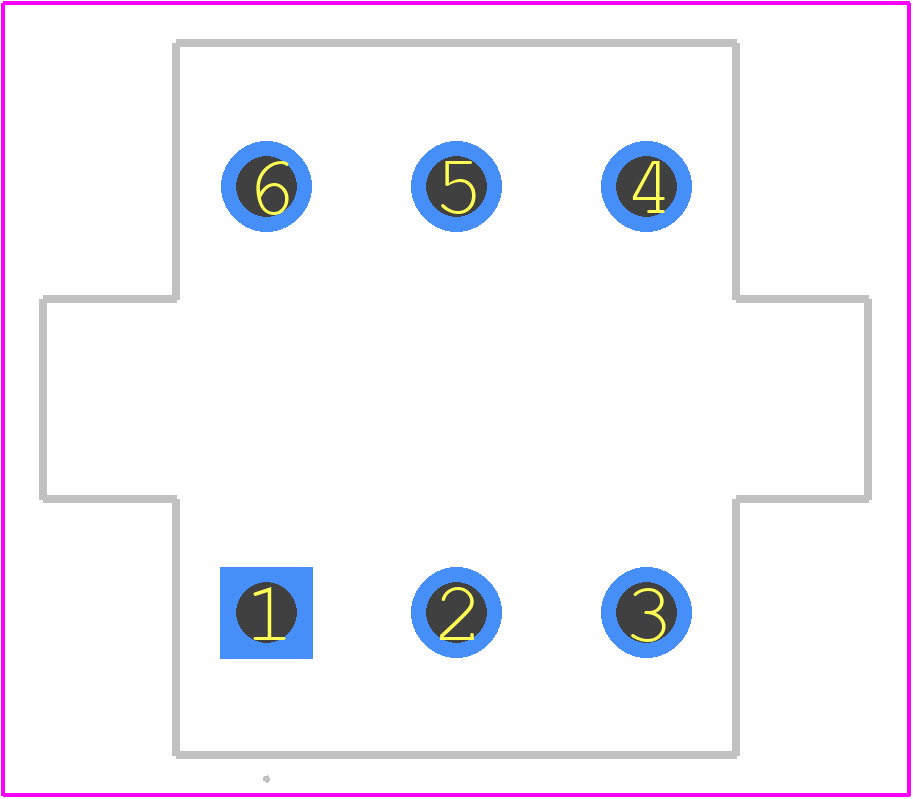

TY-141P - Triad Magnetics PCB footprint - Other - Other - TY-141P-6
click to zoom
3D Models
TY-141P - Triad Magnetics - 3D model - Other - TY-141P-6
click to zoom

TY-141P Details

  • Manufacturer Part Number:

    TY-141P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    LINE MATCHING

  • DC Unbalance Current-Max:

    4 mA

  • Height:

    15.88 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    20.64 mm

  • Load Resistance:

    107 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    15 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Primary Impedance:

    10000 OHMS CT

  • Secondary Impedance:

    10000 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    15.08 mm

TY-141P Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the TY-141P is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the TY-141P can be used in a switching power supply application, but it's recommended to derate the power handling to ensure reliable operation.
  • The maximum ambient temperature rating for the TY-141P is 130°C, but it's recommended to derate the power handling at higher temperatures to ensure reliable operation.
  • No, the TY-141P is not suitable for use in a high-reliability or military application. It's a commercial-grade transformer and does not meet the requirements for high-reliability or military applications.
  • Yes, the TY-141P can be used in a push-pull or half-bridge converter topology, but it's recommended to ensure that the transformer is properly designed and optimized for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TY-141P Overview

Use the download button to access the TY-141P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TY-14, or try a keyword search, such as Audio Transformers
