TY-142P - Triad Magnetics

Description: Audio Transformers / Signal Transformers AUDIO XFMR 10Kct:2Kct 4mADC 100mW PCB MOUNT/TY-142P

Download TY-142P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TY-142P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

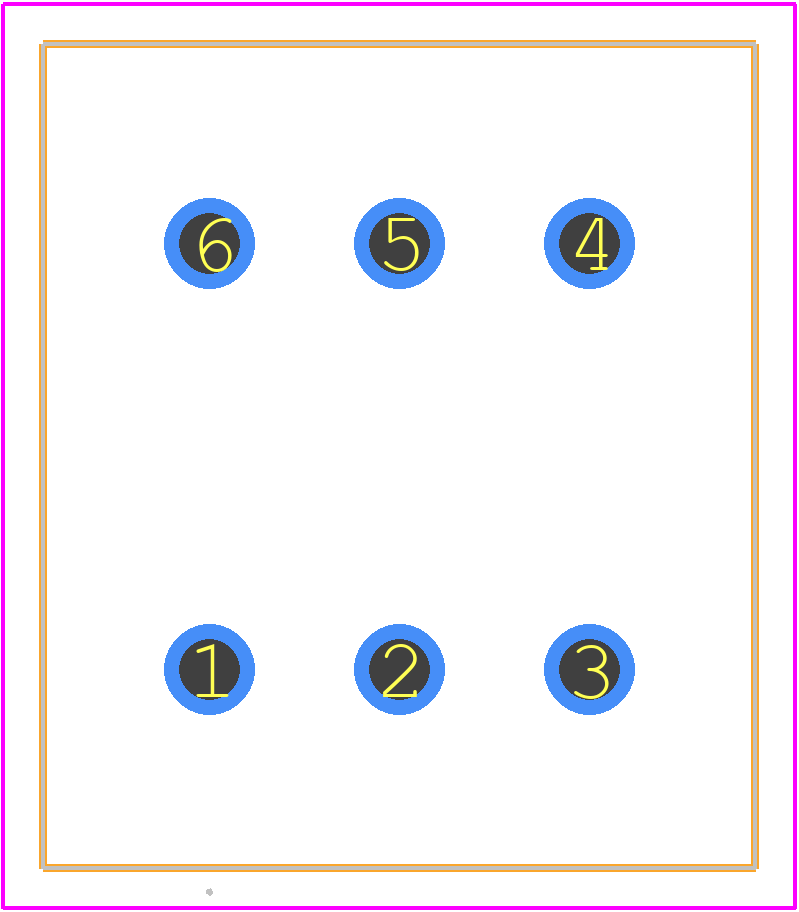

TY-142P - Triad Magnetics PCB footprint - Other - Other - TY-142P-1
click to zoom
3D Models
TY-142P - Triad Magnetics - 3D model - Other - TY-142P-1
click to zoom

TY-142P Details

  • Manufacturer Part Number:

    TY-142P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    LINE MATCHING

  • Height:

    15.88 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    20.64 mm

  • Load Resistance:

    217 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    15 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Primary Impedance:

    10000 OHMS CT

  • Secondary Impedance:

    2000 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Turns Ratio (Np:Ns):

    2.24:1

  • Width:

    15.08 mm

TY-142P Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the TY-142P is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the TY-142P can be used in a switching power supply application, but it's recommended to derate the power handling to ensure reliable operation.
  • The maximum ambient temperature rating for the TY-142P is 130°C, but it's recommended to derate the power handling at higher temperatures to ensure reliable operation.
  • The TY-142P is designed for low-voltage applications, but it can be used in high-voltage applications with proper insulation and safety precautions.
  • The recommended wire size for the TY-142P is 18-20 AWG, but it depends on the specific application and current requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TY-142P Overview

Use the download button to access the TY-142P schematic symbol, PCB footprint, and 3D model.
