TY-145P - Triad Magnetics

Description: 600CT Impedance Primary Ohms 600CT Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole

Download TY-145P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

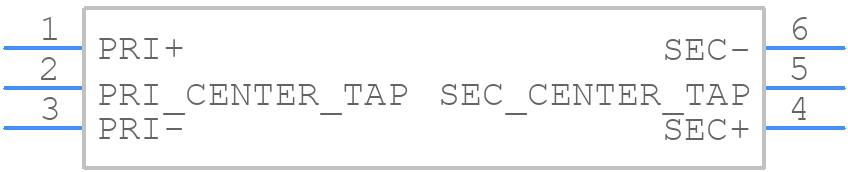

TY-145P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

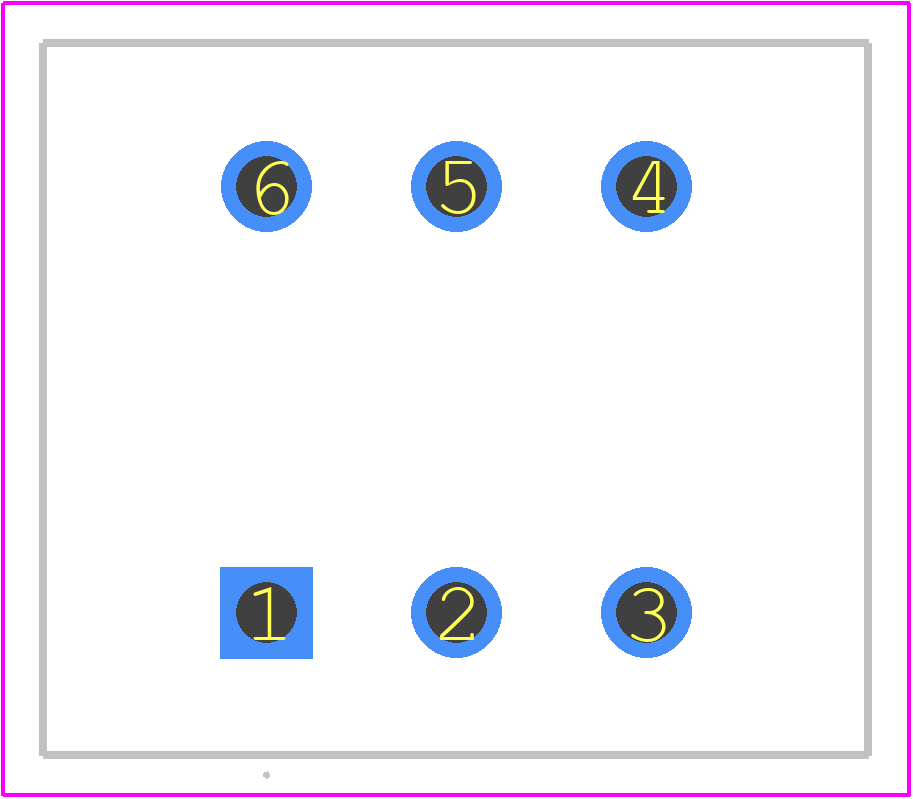

TY-145P - Triad Magnetics PCB footprint - Other - Other - TY-145P-4
click to zoom
3D Models
TY-145P - Triad Magnetics - 3D model - Other - TY-145P-4
click to zoom

TY-145P Details

  • Manufacturer Part Number:

    TY-145P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    LINE MATCHING

  • DC Unbalance Current-Max:

    15 mA

  • Height:

    15.88 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    20.64 mm

  • Load Resistance:

    58 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    15 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Primary Impedance:

    600 OHMS CT

  • Secondary Impedance:

    600 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    15.08 mm

TY-145P Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the TY-145P is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the TY-145P is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the TY-145P is 130°C, but derating may be required for high-temperature applications.
  • Yes, the TY-145P meets the requirements of UL 1561 and IEC 61558 safety standards for transformers.
  • The TY-145P is designed for low-voltage applications, but it can be used in high-voltage applications with proper design and testing to ensure safe and reliable operation.
