TY-146P - Triad Magnetics

Description: Audio Transformers / Signal Transformers AUDIO XFMR 150/600ct:150/600ct 1000mW PCB MOUNT/TY-146P

Download TY-146P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

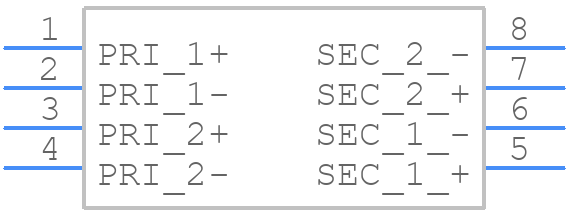

TY-146P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

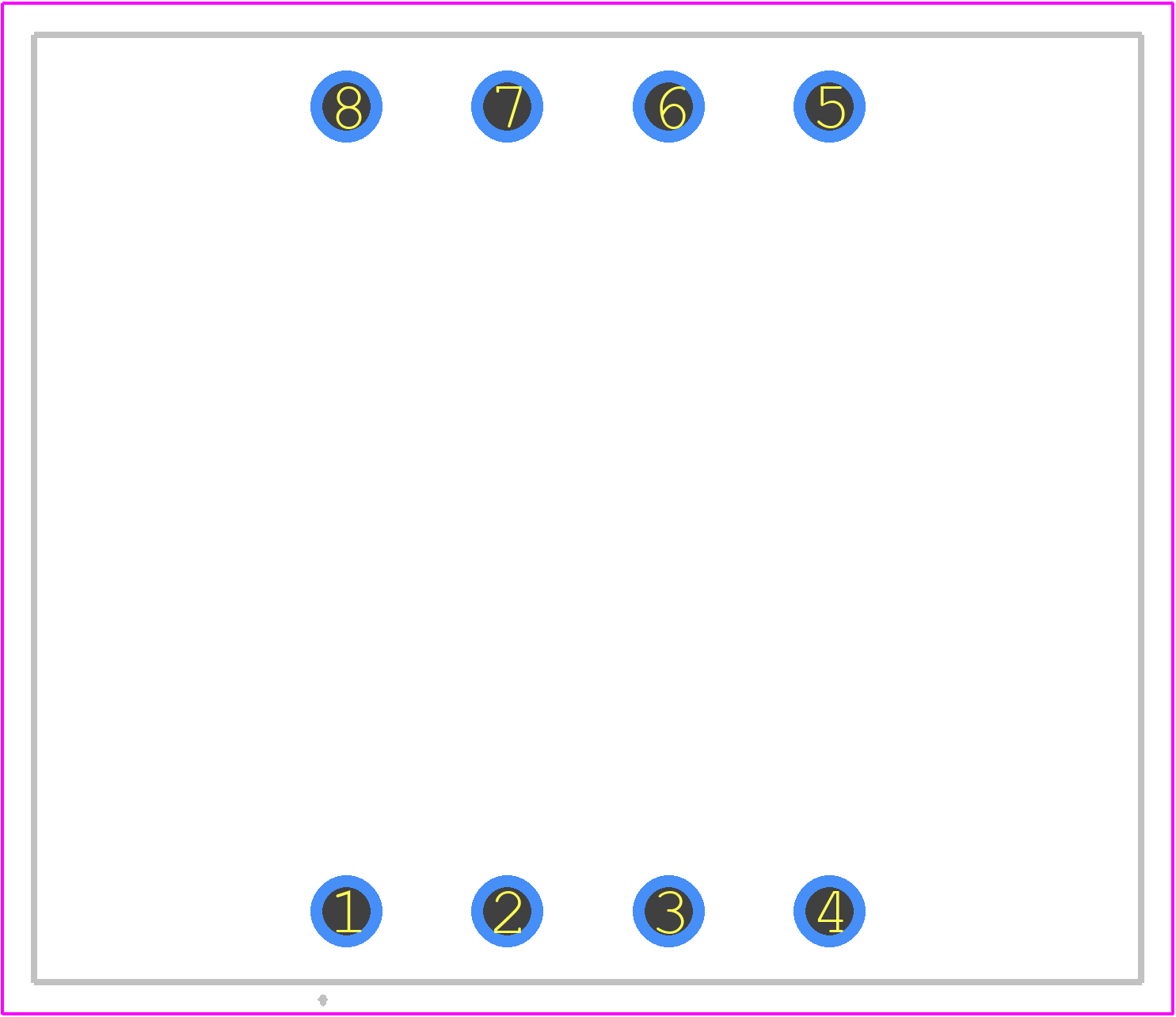

TY-146P - Triad Magnetics PCB footprint - Other - Other - TY-146P-1
click to zoom
3D Models
TY-146P - Triad Magnetics - 3D model - Other - TY-146P-1
click to zoom

TY-146P Details

  • Manufacturer Part Number:

    TY-146P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    LINE MATCHING

  • Height:

    28.58 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    15 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Primary Impedance:

    600 OHMS CT

  • Secondary Impedance:

    600 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    28.58 mm

TY-146P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TY-146P is -40°C to +85°C, although it can withstand storage temperatures from -40°C to +125°C.
  • To ensure reliability in high-vibration environments, it is recommended to secure the transformer using a suitable mounting method, such as screwing or adhesive, and to follow proper PCB design and layout guidelines.
  • The maximum allowable DC resistance for the TY-146P is 10 ohms for the primary winding and 20 ohms for the secondary winding.
  • Yes, the TY-146P is suitable for use in switching power supply applications, but it is essential to ensure that the transformer is designed to handle the high-frequency switching and to follow proper design guidelines.
  • The correct turns ratio for your application depends on the specific requirements of your design. You can use the following formula to calculate the turns ratio: Turns Ratio = (Primary Voltage / Secondary Voltage) x (Primary Turns / Secondary Turns).
