Part Image

TY-250P - Triad Magnetics

Description: 1kCT Impedance Primary Ohms 1kCT Impedance Secondary Ohms 1:1, 2:1 Audio Transformer 20Hz ~ 20kHz Through Hole

Download TY-250P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

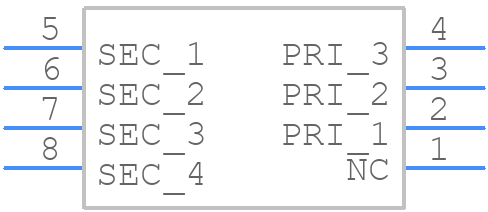

Symbol
TY-250P - Triad Magnetics - PCB symbol
click to zoom

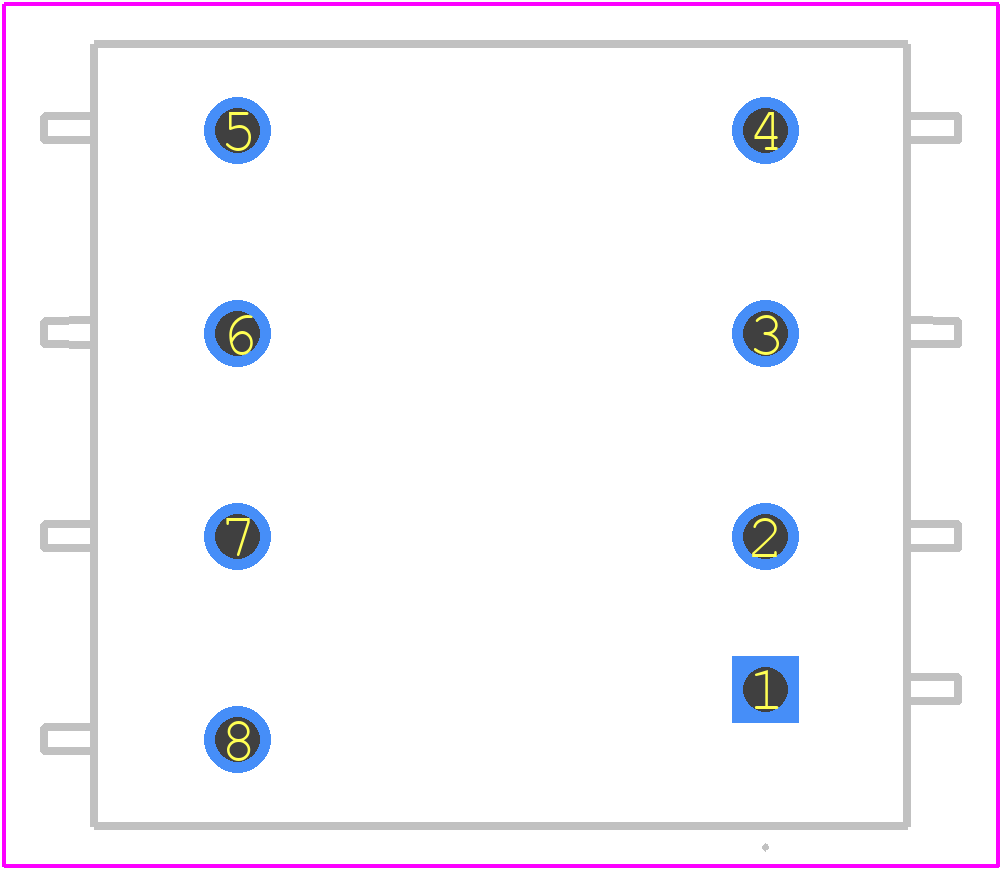

PCB Footprints
TY-250P - Triad Magnetics PCB footprint - Other - Other - (20.32mm x 19.56mm x (17.78mm))
click to zoom
3D Models
TY-250P - Triad Magnetics - 3D model - Other - (20.32mm x 19.56mm x (17.78mm))
click to zoom

TY-250P Details

  • Manufacturer Part Number:

    TY-250P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    7

  • Application:

    INPUT; ISOLATION; LINE MATCHING; OUTPUT

  • Height:

    17.78 mm

  • Length:

    22.86 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    20 kHz

  • Operating Frequency-Min:

    0.02 kHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Impedance:

    1000 OHMS

  • Secondary Impedance:

    1000 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    19.56 mm

TY-250P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TY-250P is -20°C to 85°C.
  • Yes, the TY-250P is designed to withstand high-vibration environments and is suitable for use in applications with high mechanical stress.
  • The maximum allowable DC resistance for the TY-250P is 0.5 ohms.
  • Yes, the TY-250P is designed to operate in high-humidity environments and meets the requirements of IEC 60068-2-78.
  • The recommended storage temperature range for the TY-250P is -40°C to 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TY-250P Overview

Use the download button to access the TY-250P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TY-25, or try a keyword search, such as Audio Transformers
