TY-300P - Triad Magnetics

Description: 600 Impedance Primary Ohms 600/600 Impedance Secondary Ohms 1:2.48 Audio Transformer 300Hz ~ 3.5kHz Through Hole

Download TY-300P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TY-300P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

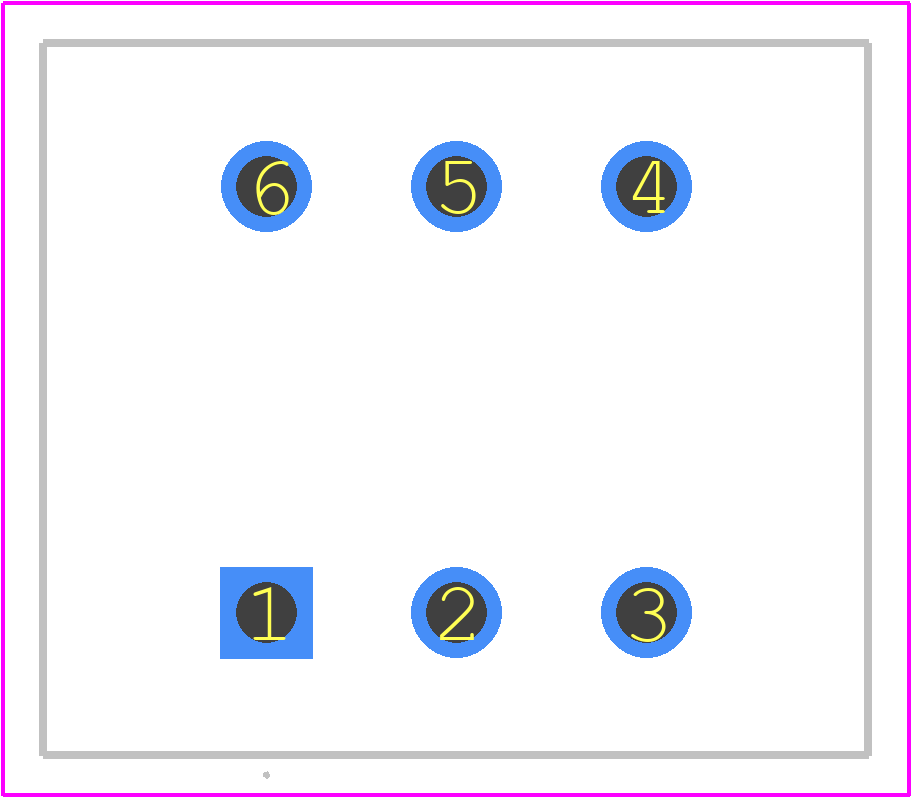

TY-300P - Triad Magnetics PCB footprint - Other - Other - TY-300P-1
click to zoom
3D Models
TY-300P - Triad Magnetics - 3D model - Other - TY-300P-1
click to zoom

TY-300P Details

  • Manufacturer Part Number:

    TY-300P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • Application:

    SIGNAL

  • Height:

    18.8 mm

  • Insertion Loss:

    0.8 dB

  • Length:

    20.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Primary Impedance:

    600 OHMS

  • Secondary Impedance:

    600 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    TELECOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    18.16 mm

TY-300P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TY-300P is -40°C to 85°C, with a maximum storage temperature of 125°C.
  • Yes, the TY-300P is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • The maximum allowable DCR for the TY-300P is 0.5 ohms maximum at 20°C, as specified in the datasheet.
  • Yes, the TY-300P is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C, and is suitable for use in industrial and commercial applications.
  • The recommended soldering temperature for the TY-300P is 260°C maximum, with a soldering time of 3-5 seconds maximum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TY-300P Overview

Use the download button to access the TY-300P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TY-30, or try a keyword search, such as Telecom Transformers
